APPENDIX G HIGH CAPACITY SECOND PAPER FEEDER
1. OUTLINE
1.1 Functions
The printer is mounted on top of this High Capacity Second Paper Feeder. The High Capacity Second
Paper Feeder supplies paper automatically through the operation of pulse motor (hopping), which is
driven by signals sent from the printer.
The main functions are the followings:
• Paper that can be used:
[Paper Type]
• Standard paper: Xerox 4200 (20-lb)
• Special paper: OHP sheets (for PPC), Label sheets (PPC sheets); use of envelopes or
thick paper is not possible.
• Cut sheet size: A4, A5, B5, Letter, Executive, Legal13, Legal14
• Special size: Paper width: 148 to 216mm
Paper length: 210 to 355.6mm
[Weight]
• 16-lb to 24-lb (60 to 90 g/m
2
)
• Paper setting quantity: 500 sheets of paper weighing 64 g/m
2
1.2 External View and Component Names

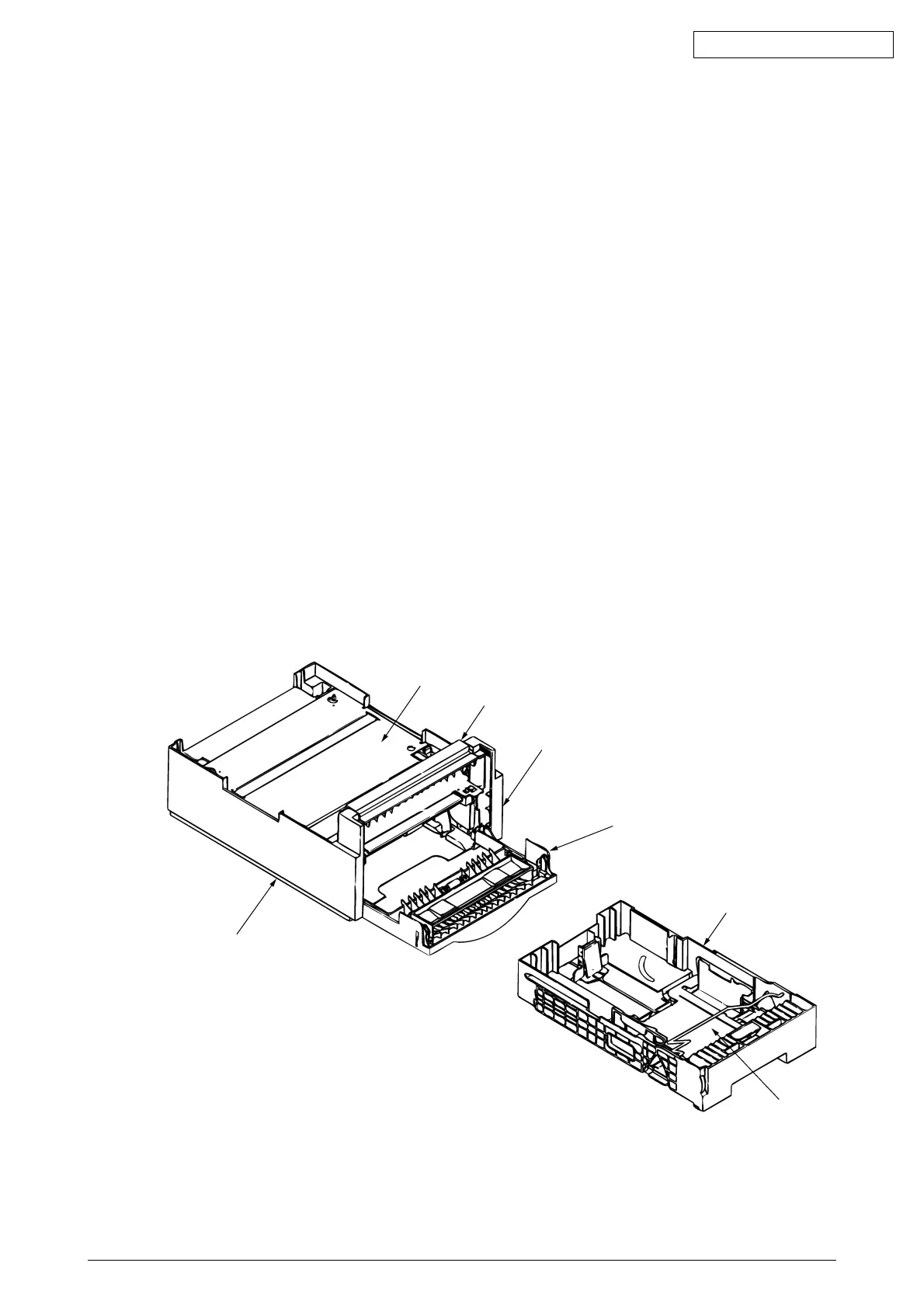

Figure 1-1 External View and Component Names
Cassette Assy
Front Plate
Front Cover Assy
Guide R (2nd) Assy
Guide L (2nd) Assy
Sheet Guide Assy
Upper Plate
