2.3.10 Motor Assy
(1) Remove the upper cover assy (see 2.3.1).
(2) Remove the operator panel assy (see 2.3.3).
(3) Remove the face up stacker assy (see 2.3.8).
(4) Remove the lower base unit (see 2.3.4).

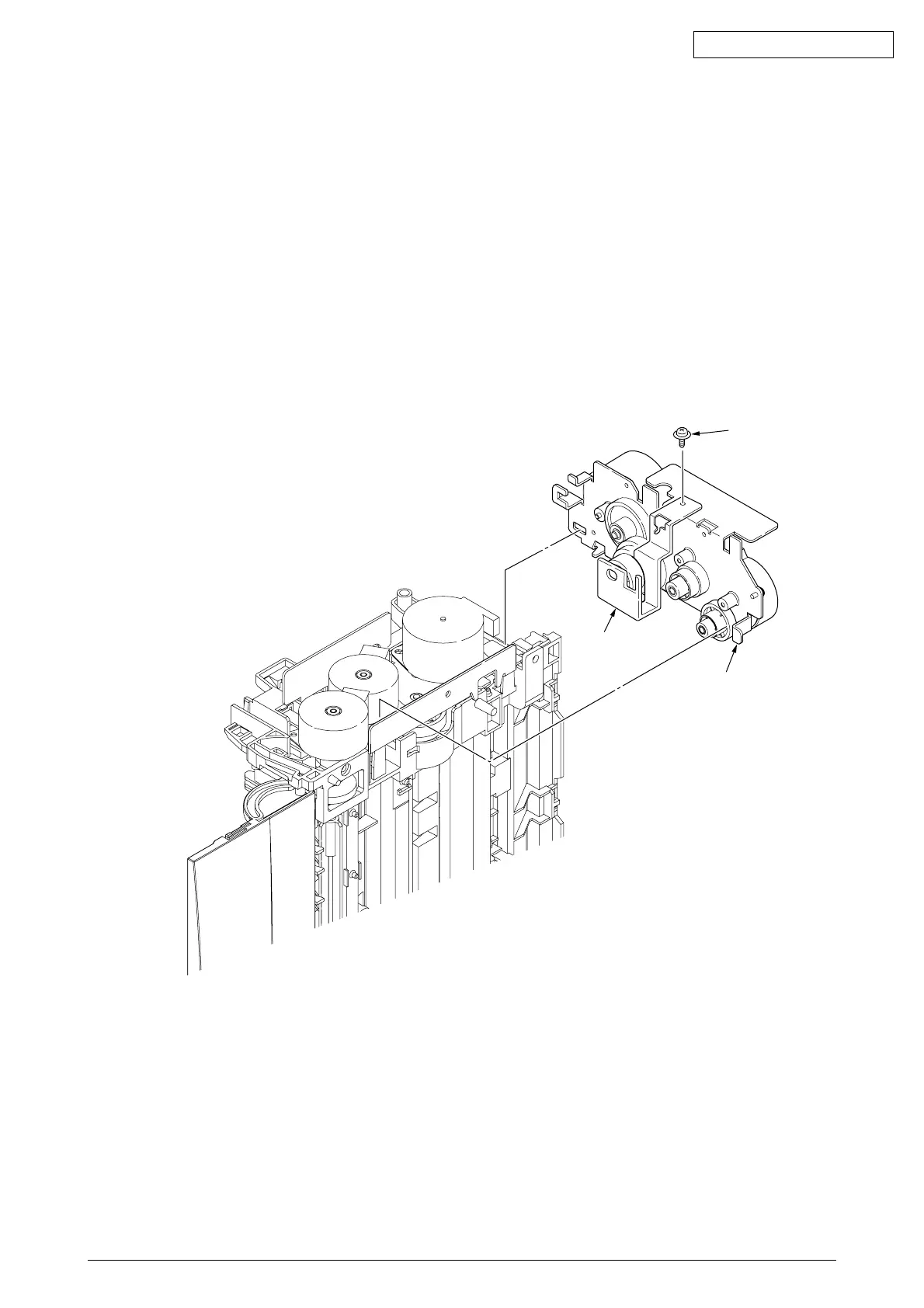

(5) Stand the lower base unit on its side as shown, and unlock two latches, then remove the motor assy
1.
(6) Remove screw 2 and remove the bracket-Motor-Sub 3 from the Motor bracket.
1
2
3
