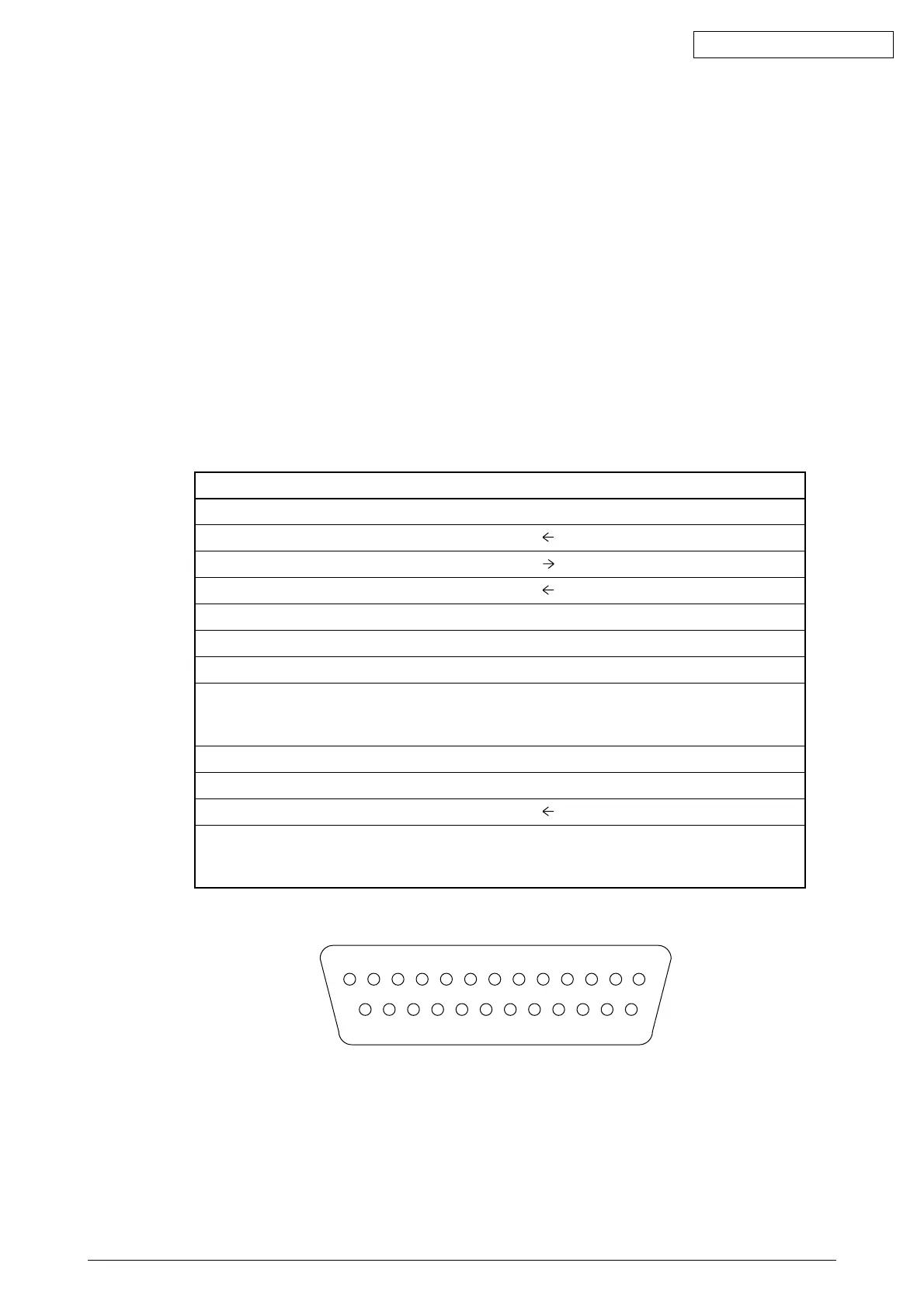

APPENDIX A RS-232C SERIAL INTERFACE (option)

1) Connector

• Printer side : 25-pin receptacle

Type DB-25S (made by Canon) or equivalent

• Cable side : 25-pin plug

Type DB-25S (made by Canon)

Shell

Type DB-C8-J10-F2-1 (made by Nihon Kouku Denshi) or equivalent

Note:

Plug shall be fixable with a lock screw.

2) Cable

• Cable length : 6 ft (1.8 m) max. (cable shall be shielded)

Note:

Cable is not provided.

3) Interface signal

Pin No. Signal name Abbreviation Signal direction Functions

1 Frame Ground FG Frame Ground

2 Transmitted Data TD PR Transmitted Data

3 Received Data RD PR Received Data

4 Request to Send RTS PR Stay space level

5 - (Not connected)

6 - (Not connected)

18 - (Not connected)

7 Signal Ground SG Signal Ground

- (Not connected)

19 - (Not connected)

20 Data Terminal Ready DTR PR Data terminal ready

- (Not connected)

• Connector pin arrangement

When the Ready/Busy protocol is used for the buffer busy control method, the busy signal can be

set to Pin-20 (DTR) in the menu.

(View from the cable side)
