3 Paper size error
• Is paper of the specified size being used?
• No Use paper of the specified size.
• Yes Are inlet sensor plates 1 and 2 operating properly (moves freely when they are touched)?
• No Replace the inlet sensor plate or clean the inlet sensor on the high voltage/sensor board.
• Yes Does the outlet sensor plate operate properly (moves freely when it is touched)?
• No Replace the outlet sensor plate or clean the outlet sensor on the high voltage/sensor
board.
• Yes Replace the high voltage/sensor board.

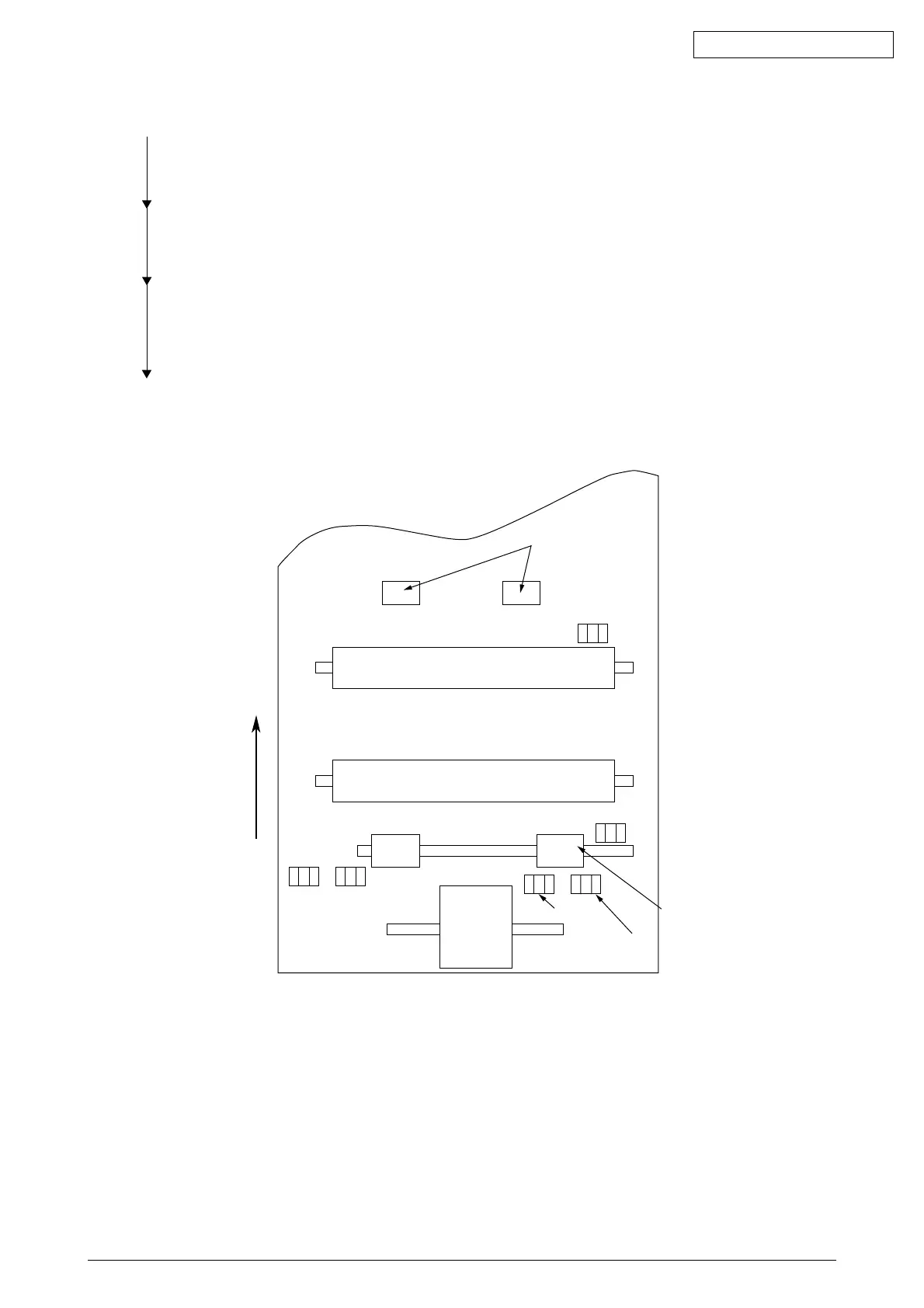

Outlet sensor
Exit roller
Heat roller
Transfer roller
Paper sensor
Registration roller
Inlet sensor 1
Inlet
sensor 2
Toner
sensor
Paper end sensor
Hopping
roller
Paper feeding direction
