5.4 Preparation for Troubleshooting

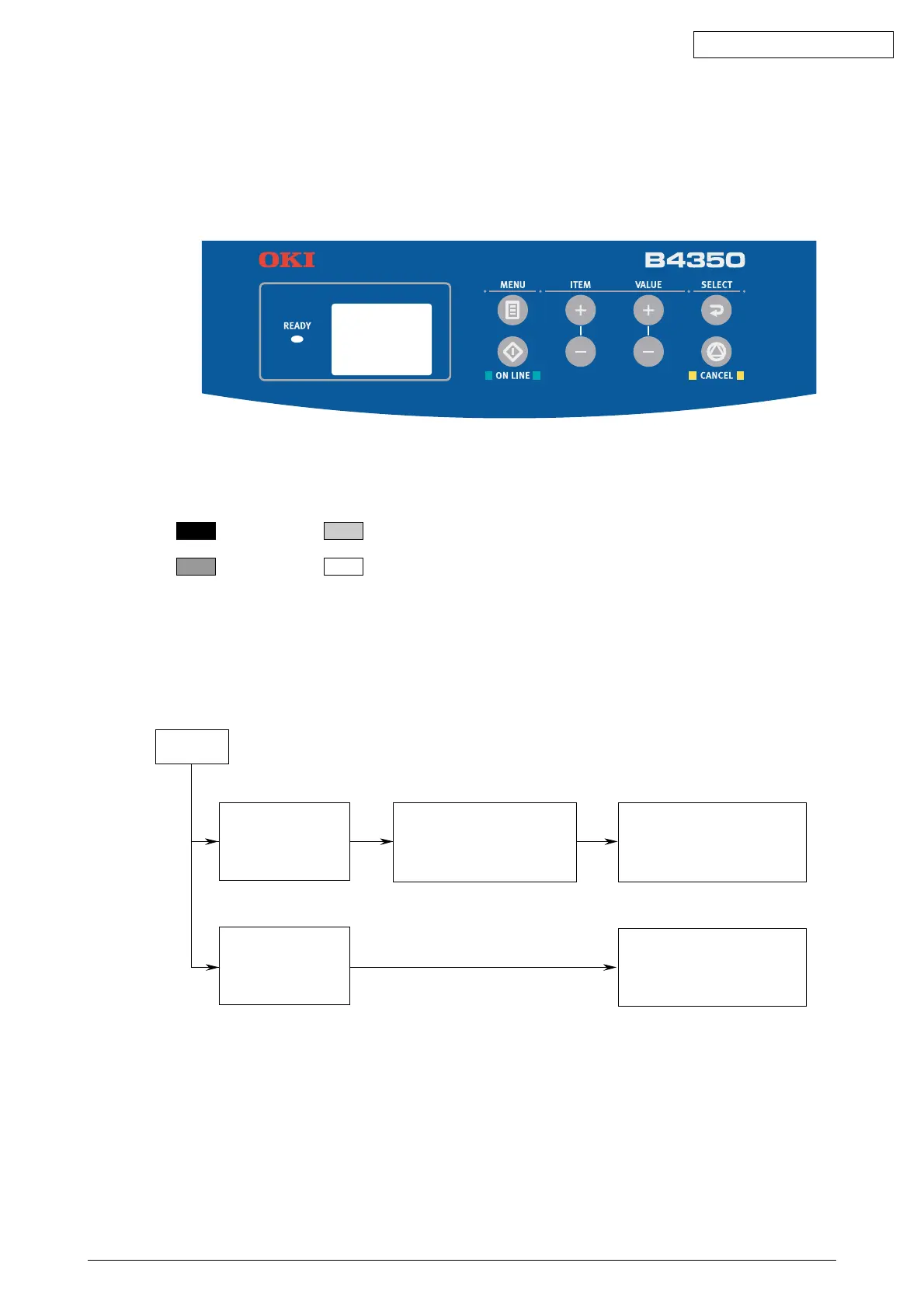

(1) Operator panel display

The failure status of the printer is displayed by the liquid crystal display (LCD) of the operator panel.

Take proper corrective action as directed by messages which are being displayed on the LCD.

For ODA/OEL/AOS

Status message display

Ready LED display

: Off : Blinking

: On : Undefined

5.5 Troubleshooting Flow

Should there be a problem with the printer, carry out troubleshooting according to the following procedure

flow:

5.5.1 LCD Status Message/Problem List (ERROR CODES)

The status and problems which may be displayed by messages on the LCD are listed in Table 5-1.

Problems

indicated by LCD

message

Image problems

(and problems which

are not indicated by

LCD message)

Carry out a detailed

troubleshooting with the

troubleshooting chart.

See Section 5.5.2.

Carry out a troubleshooting

with the troubleshooting chart.

See Section 5.5.3.

Troubleshoot from the LCD

status message list.

See Section 5.5.1.
