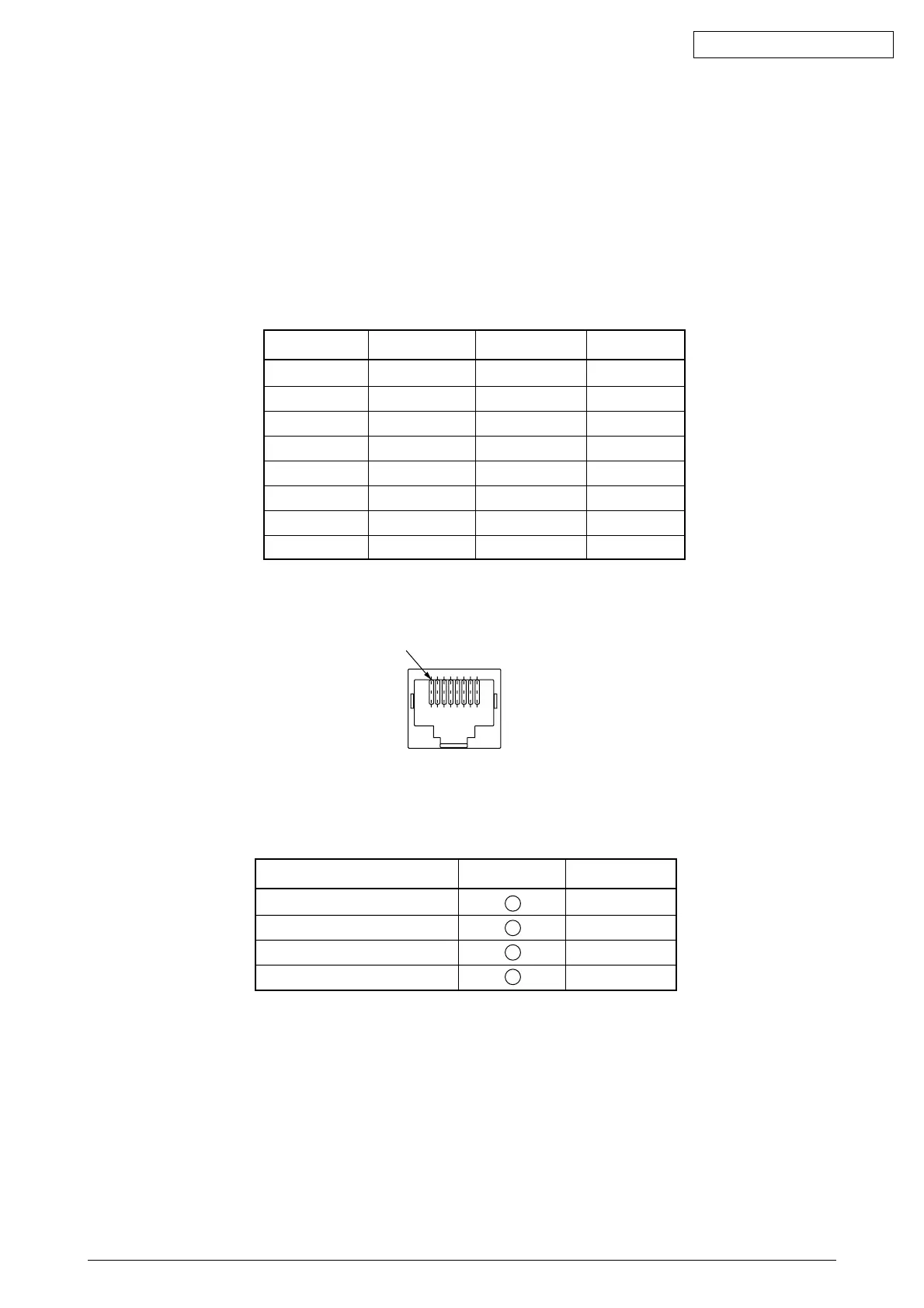

APPENDIX H NETWORK INTERFACE (OPTION)
1) Connector
• 8-pin modular jack
2) Cable
• 10BASE/T
3) Signal
4) Appearance
1pin
Contact No. Plug Jack Polarity
1
2
3
4
5
6
7
8
Power feeder3
Power feeder3
Send
Receive
Receive
Send
Power feeder2
Power feeder2
–
–
Receive
Send
Send
Receive
Power feeder2
Power feeder2
+
–
+
+
–
–
–
+
5) Physical dimensions
a) Transmission method by CSMA/CD
b) Transmission protocol
Packet type Support Remarks
Ethernet ll
IEEE802.3
IEEE802.3+IEEE802.2
IEEE802.3+IEEE802.2+SNAP
