2.3.5 Pulse Motor (Main/Drum)
(1) Remove the upper cover assy (see 2.3.1).
(2) Remove the lower base unit (see 2.3.4).

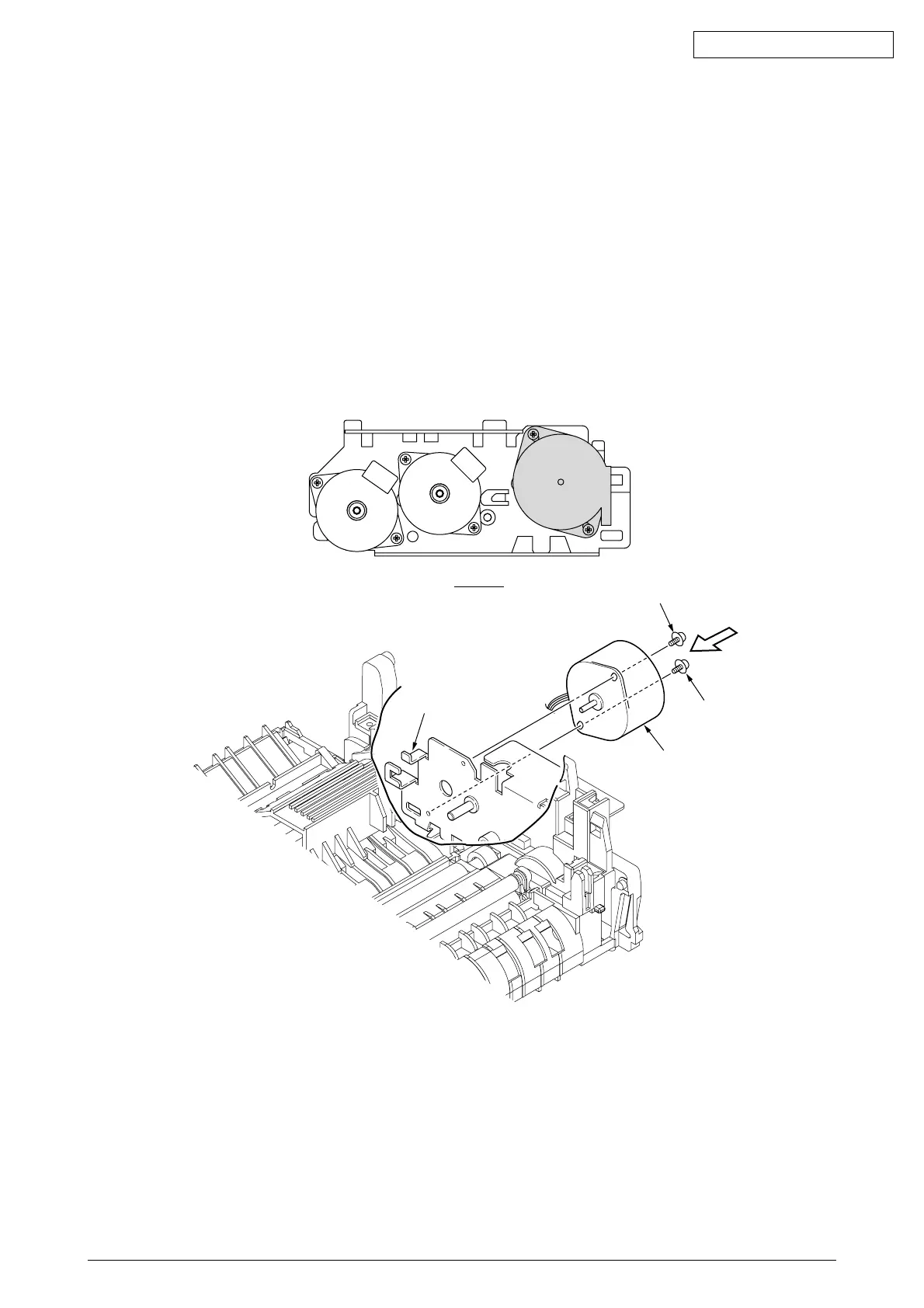

(3) Remove two screws 1 and remove the pulse motor (main/drum) 2 from the motor bracket 3.
3
1
2
1
View A
View A
