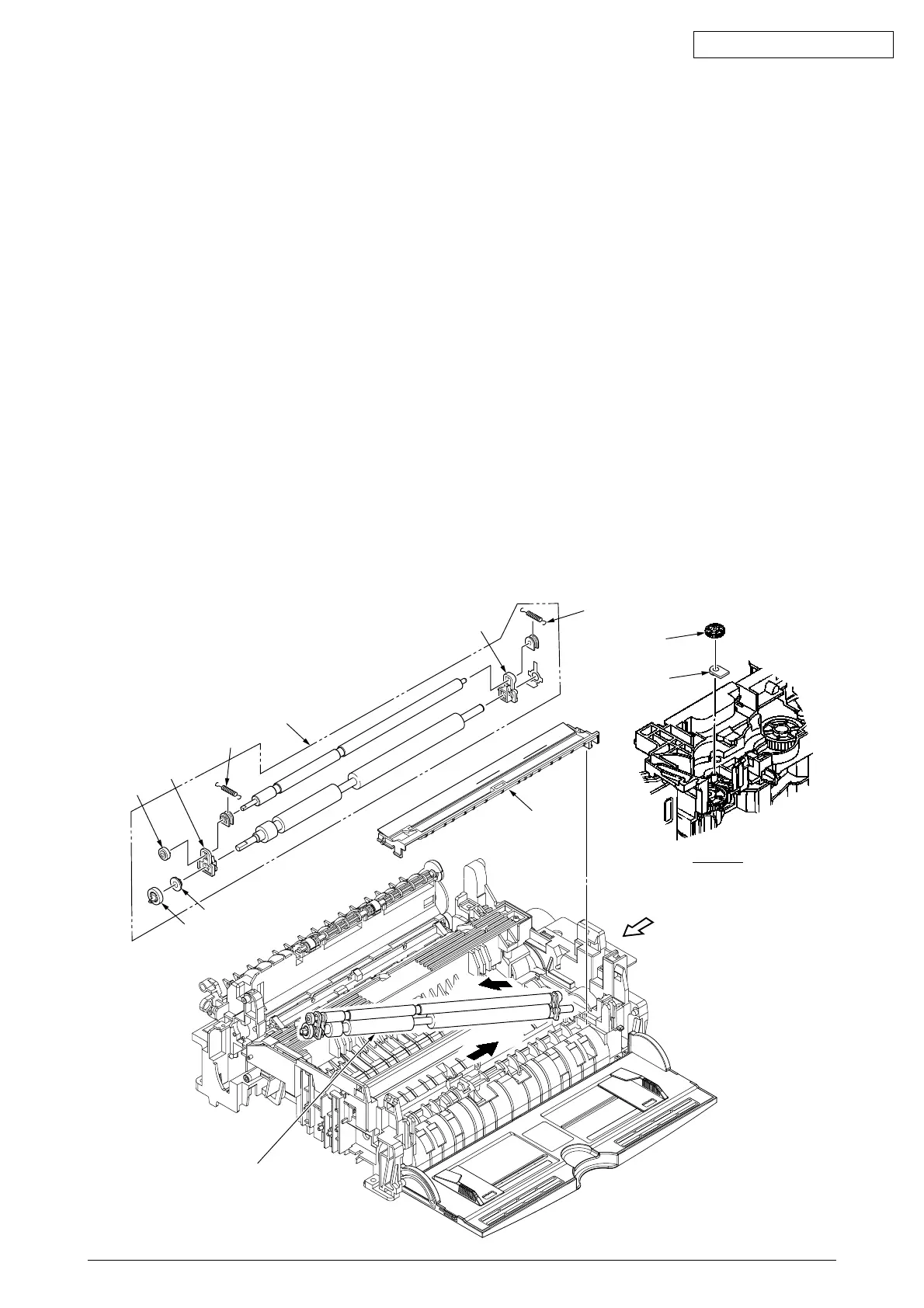

2.3.13 Registration Roller
(1) Remove the upper cover (see 2.3.1).
(2) Remove the operator panel assy (see 2.3.3).
(3) Remove the face up stacker assy (see 2.3.8).
(4) Remove the lower base unit (see 2.3.4).
(5) Remove the motor assy (see 2.3.10).
(6) Unlock the latch at the left side of the paper guide (R) 1 and remove the paper guide (R) 1.
(7) With the lower base unit standing on its side, remove the one-way clutch gear 2 and the bearing 3.
(8) Remove the Registration Gear by unloking the latch of the Gear 4.
(9) Remove the Registration Bearing L 5.
(10) Press the registration roller 6 in the direction of arrow A and lift up the left side of it, then remove
the registration roller Assy 7.
(11) Pull out the registration roller Assy 7 in the direction of arrow B.
(12) Remove the pressure roller Assy gear 8 by unloking the latch of the gear 8.
(13) Remove the bearing-Registration L 9 and bearing Registration R 0.
(14) Remove the Spring A from the bearing 9, 0.
2
3
8
9
5
A
A
1
0
7
4
View A
6
View A
A
B
To Next Page
