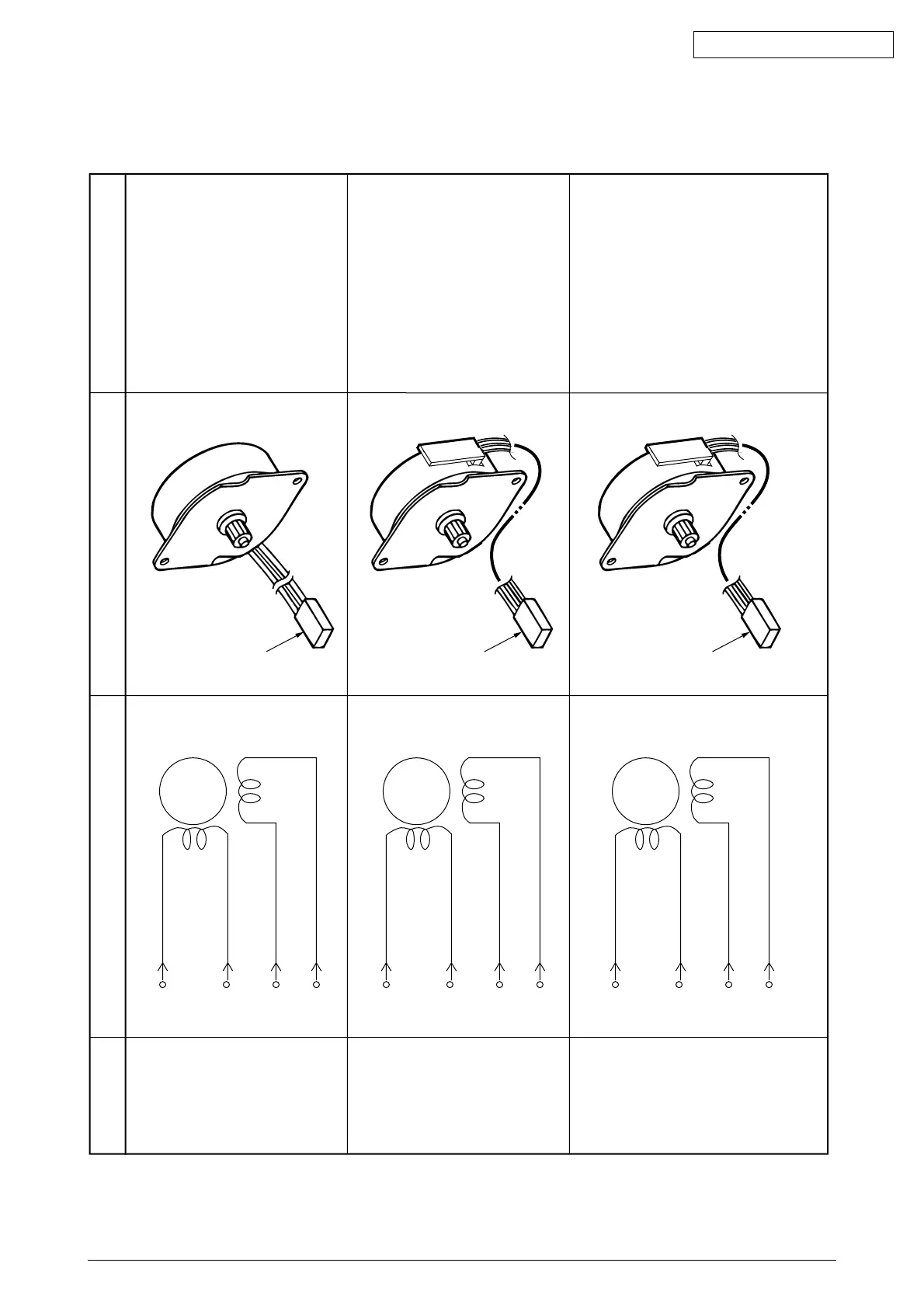

6.3 Resistance Check
Orange
Yellow
Brown
Black
M
1
2
3
4
Orange
Yellow
Brown
Black
M
1
2
3
4
Unit
Registration motor
Main/drum motor
Hopping motor
Circuit Diagram Illustration Resistance
Between Pins 1 and 2: 7.9
Ω
Between Pins 3 and 4: 7.9
Ω
Between Pins 1 and 2: 8.6
Ω
Between Pins 3 and 4: 8.6
Ω
Between Pins 1 and 2: 10.3
Ω
Between Pins 3 and 4: 10.3
Ω
Orange
Yellow
Brown
Black
M
1
2
3
4
Yellow
White
White
