2.2 Parts Layout
This section explains the layout of main components of the equipment.

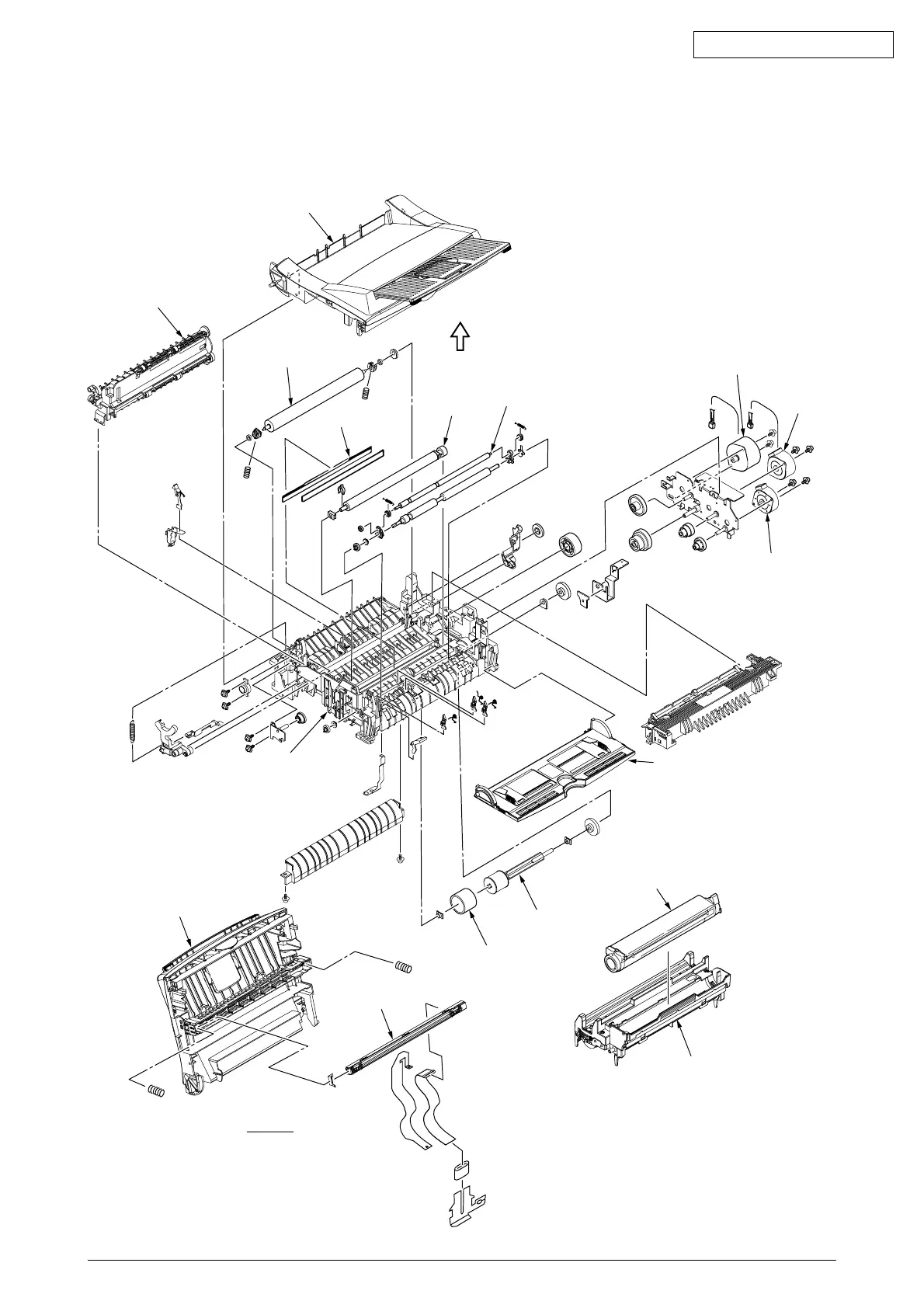

[Lower base unit]
Figure 2-1
Image drum unit (Type 9)
(consumable)
Toner cartridge (Type 9)
(consumable)
LED head
Stacker cover assy
View A
Pulse motor
(main/drum)
Pulse motor
(registration)
Pulse motor
(hopping)
Stacker cover assy
Eject roller assy
Registration
roller Assy
Back-up roller
Diselectrification bar
Transfer roller
Lower base unit
Hopping roller rubber
Hopping roller shaft
Manual feed guide assy
View A
