Oki B4350 - LED Head

42641101TH Rev.1 22 /
Oki Data CONFIDENTIAL
2.3.2 LED Head

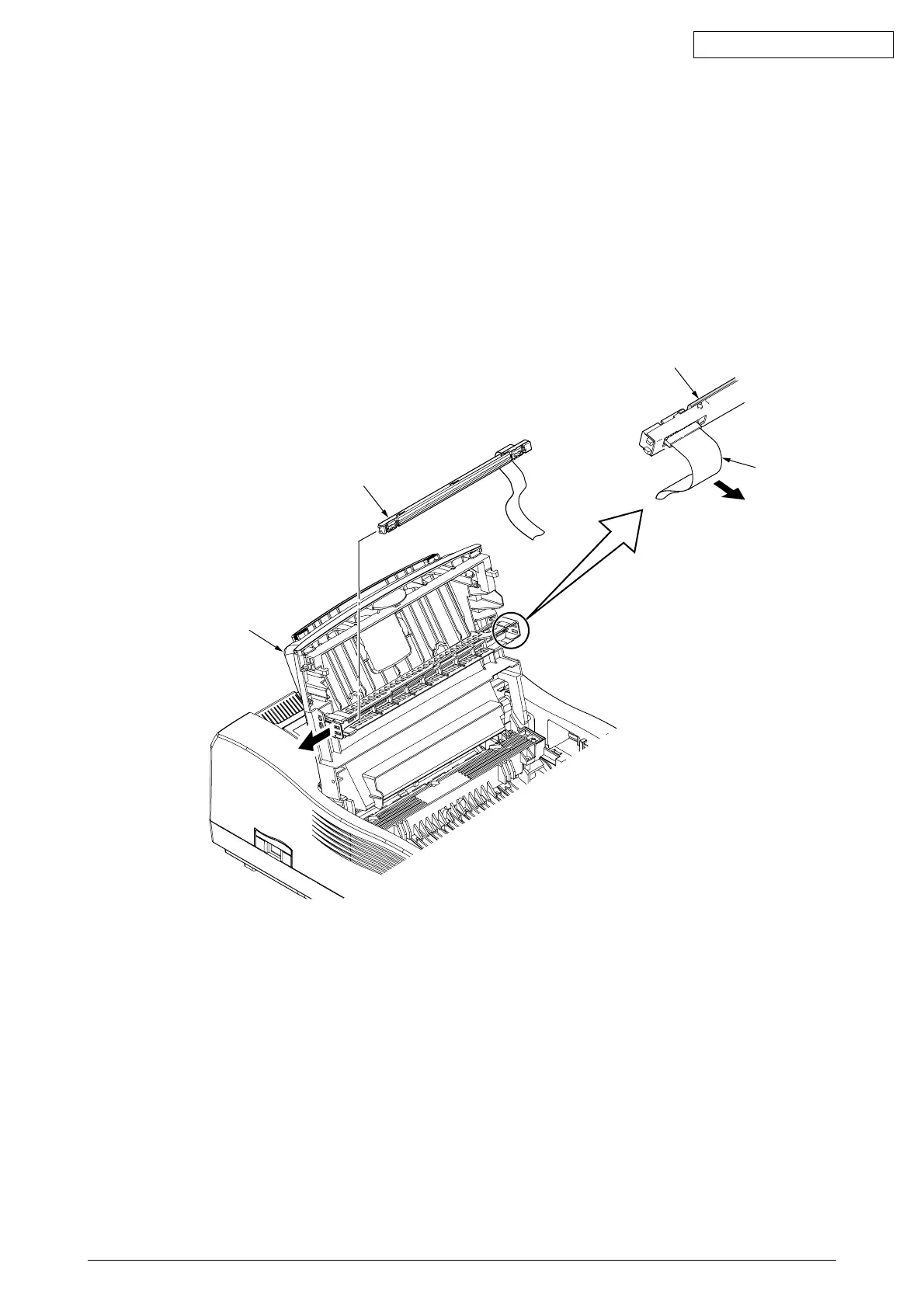

(1) Press the button on right side of the upper cover and open the stacker cover assy 1.
(2) Open the hook section on the left side of the head holder and remove the LED head 2.
(3) Remove the head cable 3 from the head connector.
Note: Be sure not to touch directly or push on the SLA part of the LED head.
SLA
(Seltoc Lens Array)
1
2
3
