[JAM error]

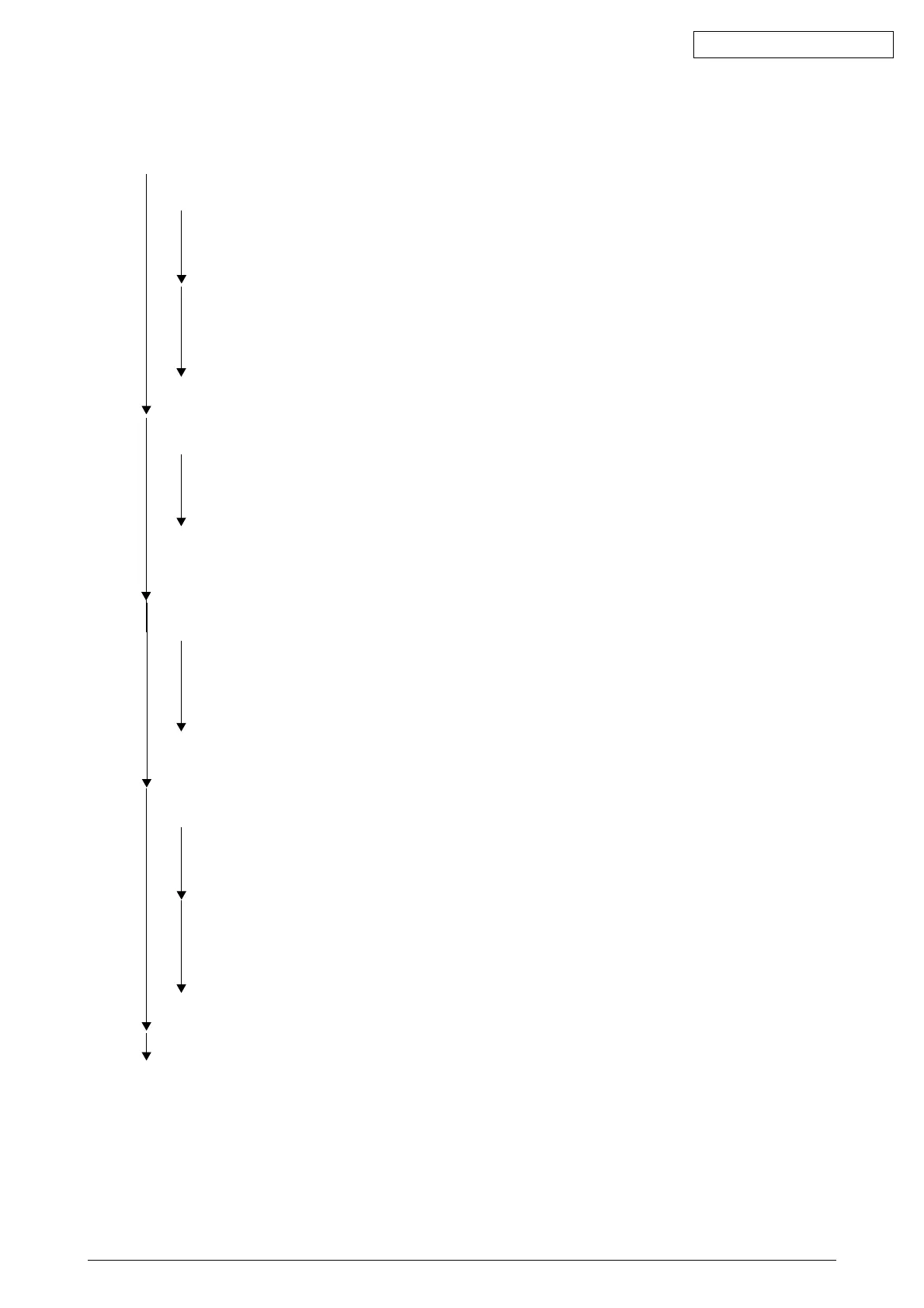

2-2 Paper feed jam

• Does the paper feed jam occur when the power is turned on?

• Yes Is the paper on the paper sensor plate?

• Yes Remove the paper.

• No Is the operation of the paper sensor plate normal (moves freely when it is

touched)?

• No Replace the paper sensor plate.

• Yes Replace the high voltage/sensor board.

• No Has the paper reached the paper sensor plate?

• No Is the hopping roller rotating?

• No Check the hopping roller assembly or tray or hopping motor.

• Yes Is the image drum cartridge being set properly?

• No Set the image drum cartridge properly.

• Yes Has the paper reached the outlet sensor plate?

• Yes Is the operation of the outlet sensor plate normal (moves freely when it is

touched)?

• No Replace the outlet sensor plate.

• Yes Clean the outlet sensor on the high voltage/sensor board or replace the high

voltage/sensor board.

• No Is the main/drum motor rotating?

• No Is DM connector on the main control board being connected properly?

• No Connect DM connector properly.

• Yes Is the coil resistance (normal resistance: both between Pins l and 2, as well as

Pins 3 and 4 are about 8.6Ω) of the main/drum motor correct ?

• No Replace the main/drum motor.

• Yes Replace the main control board.

• Yes Is the transfer roller rotating?

2-2-a
