Oki C5100 Maintenance Manual

Oki Data CONFIDENTIAL
42049001TH Rev.1 139 /
APPENDIX B 2ND TRAY MAINTENANCE
1. Parts Replacement
1
2
4
3
5
× 6

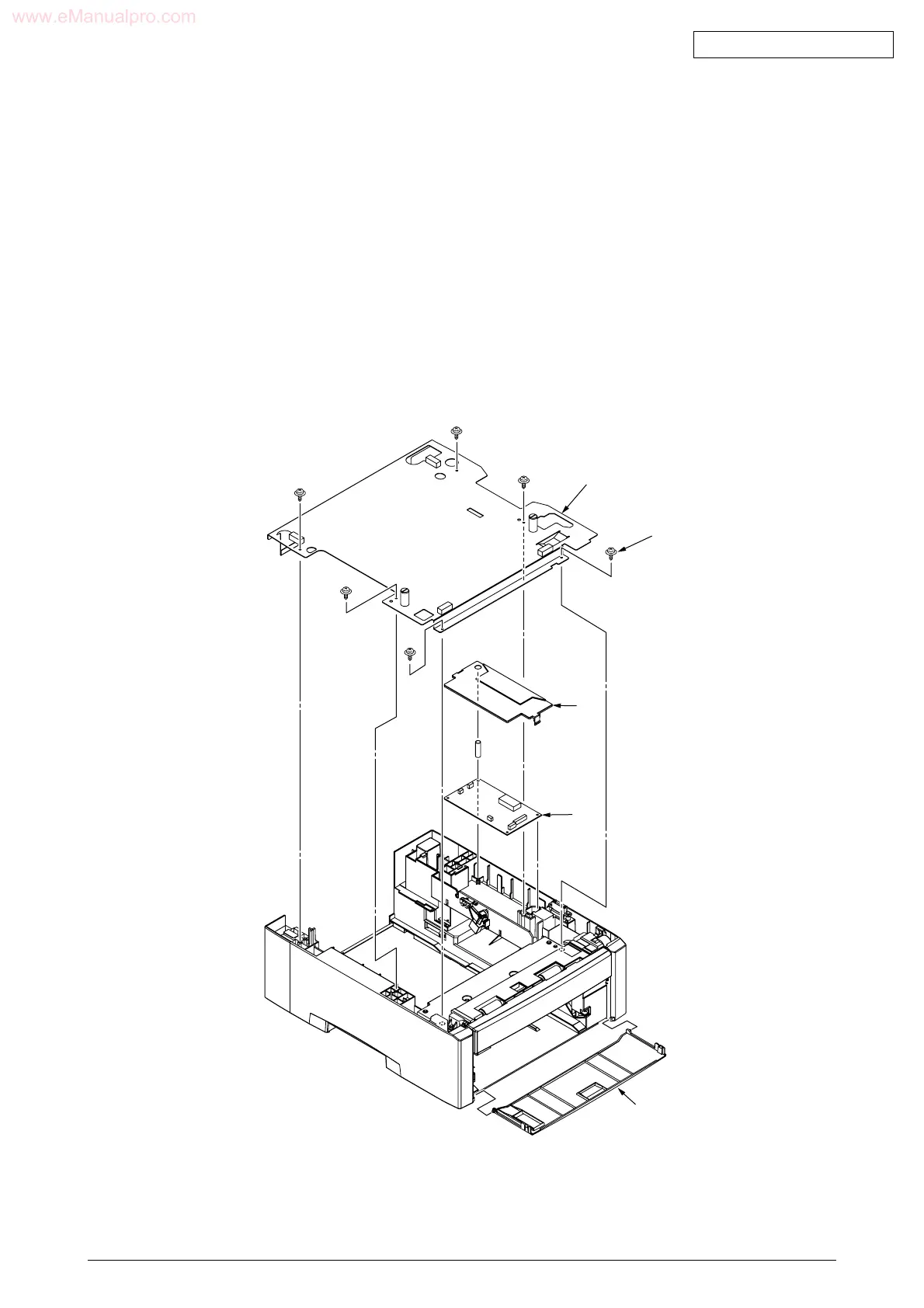

1.1 PCB
(1) Unscrew the six screws 1 to remove the plate-top 2.
(2) Remove the cover-side R 3.
(3) Remove the connectors (at five places), then uninstall the board 4.
(4) Remove the cover - 2nd tray 5.
