Oki C5100 - Controller PWB

42049001TH Rev.1 21 /
Oki Data CONFIDENTIAL
2.2.7 Controller PWB
C5300
(1) Remove the Print Engine Controller PWB (see section 2.2.8).
(3) Remove the screw 1 and then the head cable 2.
(4) Remove the eight screws 3, then detach the controller PWB 4.

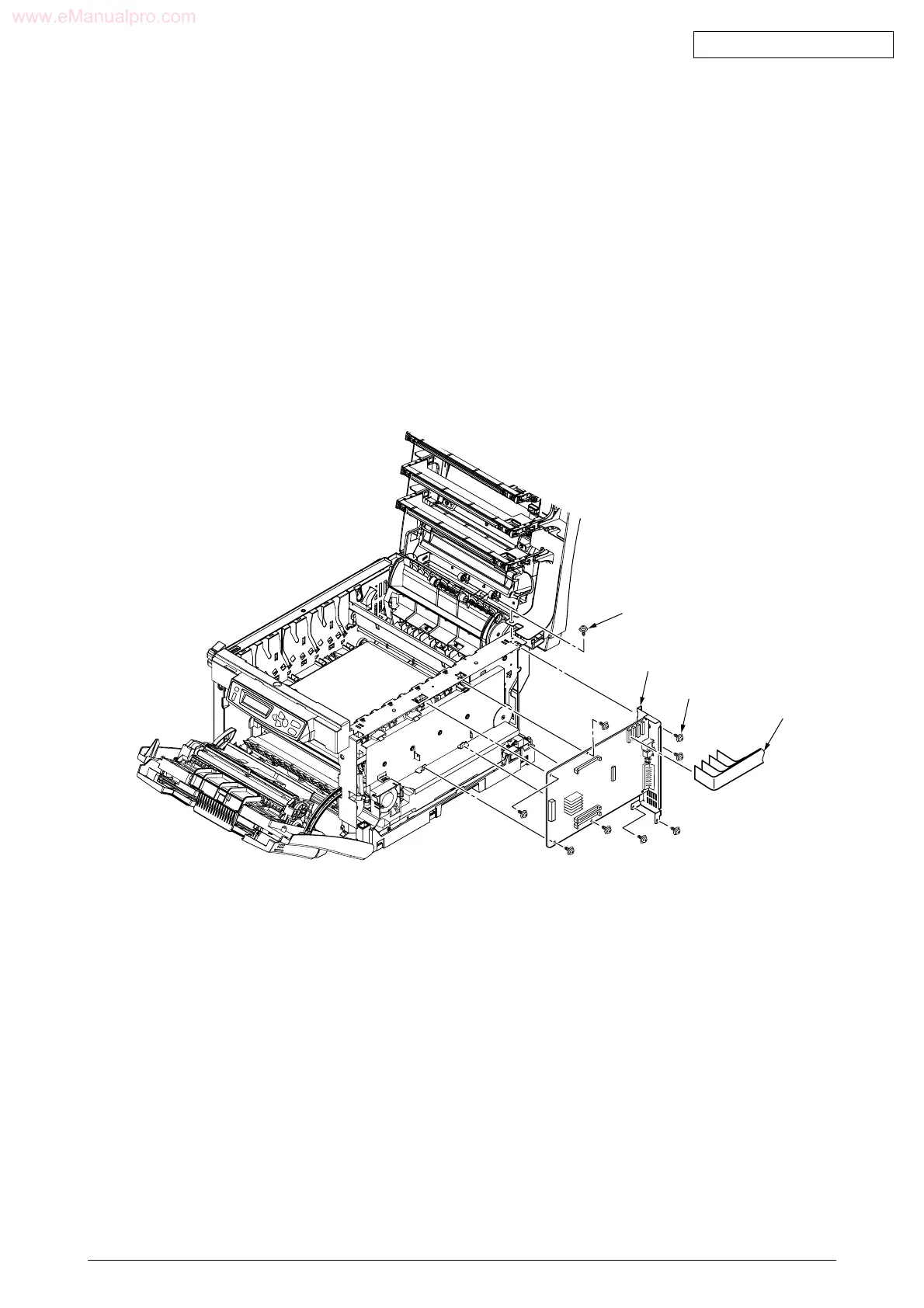

Figure 2-2-7-1 Controller PWB (C5300)
1
2
4
3
× 8
