Oki Data CONFIDENTIAL
42049001TH Rev.1 140 /
6
5
5
7
3
0
9
3
4
1
2
8

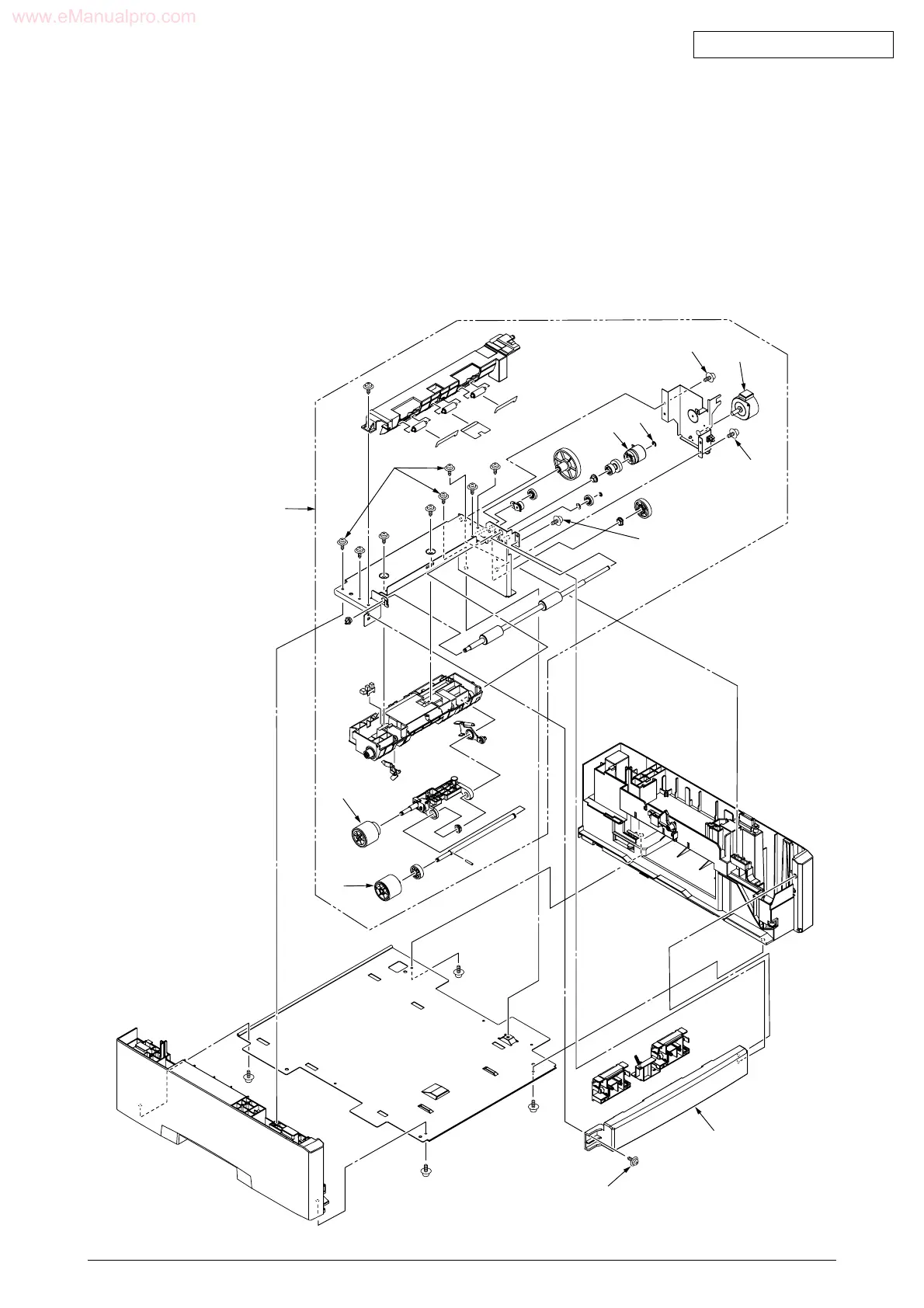

1.2 Frame Assy- Hopping
(1) Remove the PCB (see section 1.1).
(2) Remove the three screws 1 to uninstall the hopping assy 2.
(3) Unscrew the two screws 3 to remove the cover assy - front 4.
(4) Unscrew the two screws 5 to remove the motor 6.
(5) Remove the E ring 7 to remove the clutch 8.
(6) Remove the roller assy - hopping 9.
(7) Remove the roller assy - feed 0.
