2.2.10 Controller Panel Assy
(1) Open the top cover.
(2) Open the feeder unit.
(3) Remove the right side cover (see section 2.2.3).
(4) Remove the plate-shield assy (GDI) [see section 2.2.7, step (2)].
(5) Make control panel assy connector removal (see section 2.2.8).
(6) Remove the four screws 1, then detach the control panel assy 2.

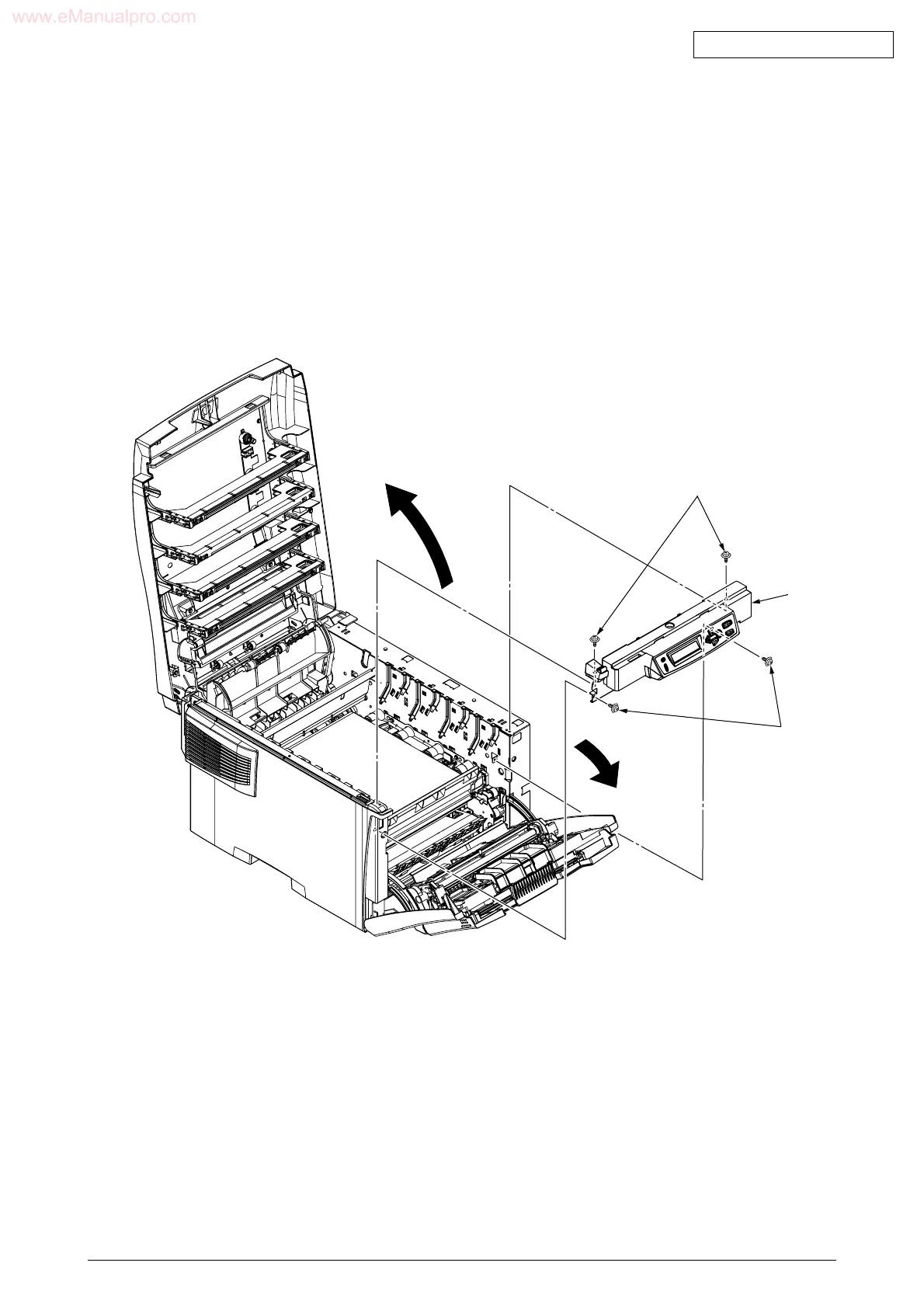

Figure 2-2-10 Control Panel Assy
1
1
2
