Oki C5100 Maintenance Manual

42049001TH Rev.1 20 /
Oki Data CONFIDENTIAL
1
2
Hook (each side)
3
2.2.6 LED Assy / LED Assy Springs
(1) Open the top cover 1.
(2) Remove the cable connection of, and disengage the two hooks of, the LED assy 2 to detach
the assy (the two springs 3 become detached together with the LED Assy 2).

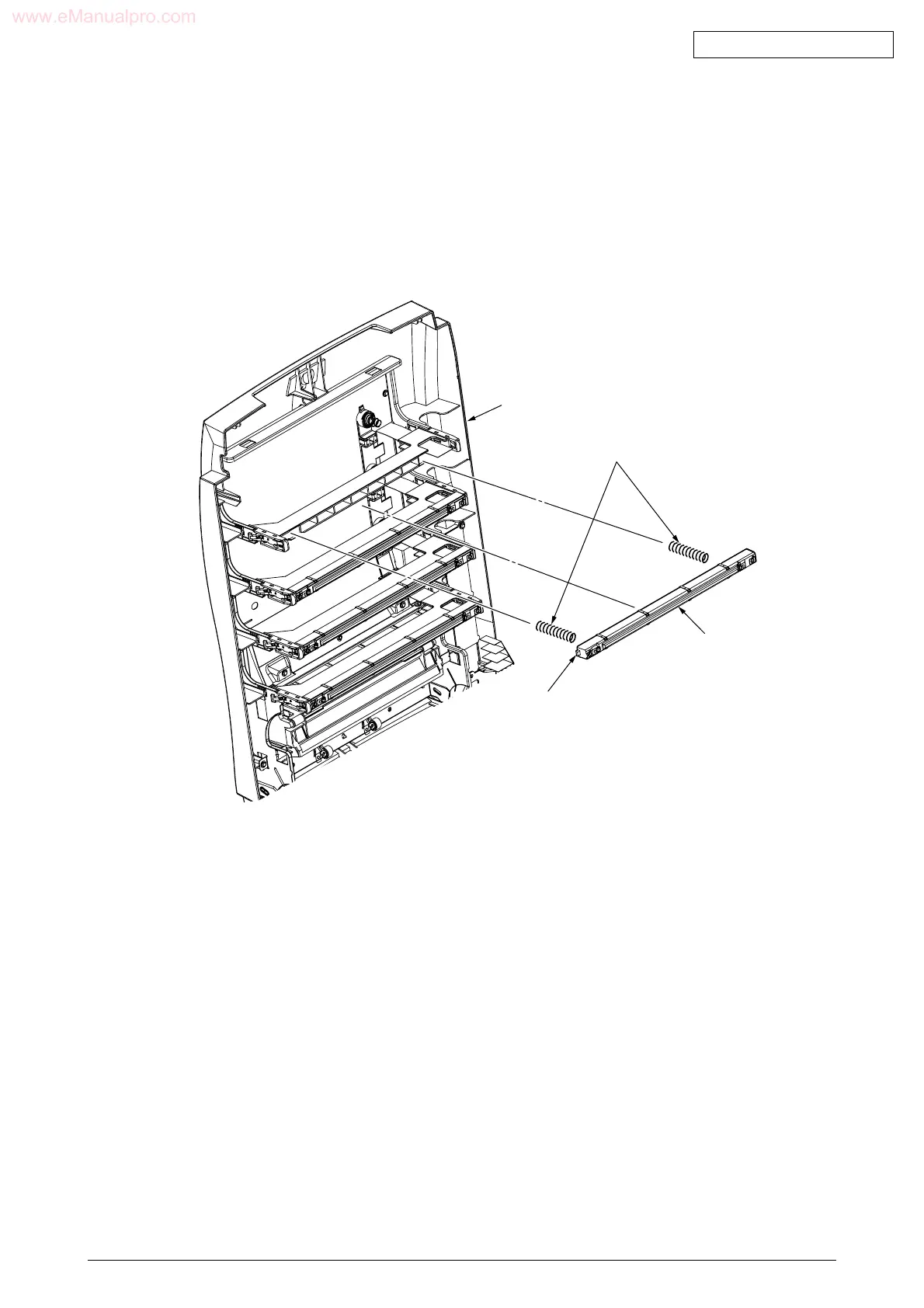

Figure 2-2-6 LED Assy / LED Assy Springs
