Oki Data CONFIDENTIAL
42049001TH Rev.1 144 /

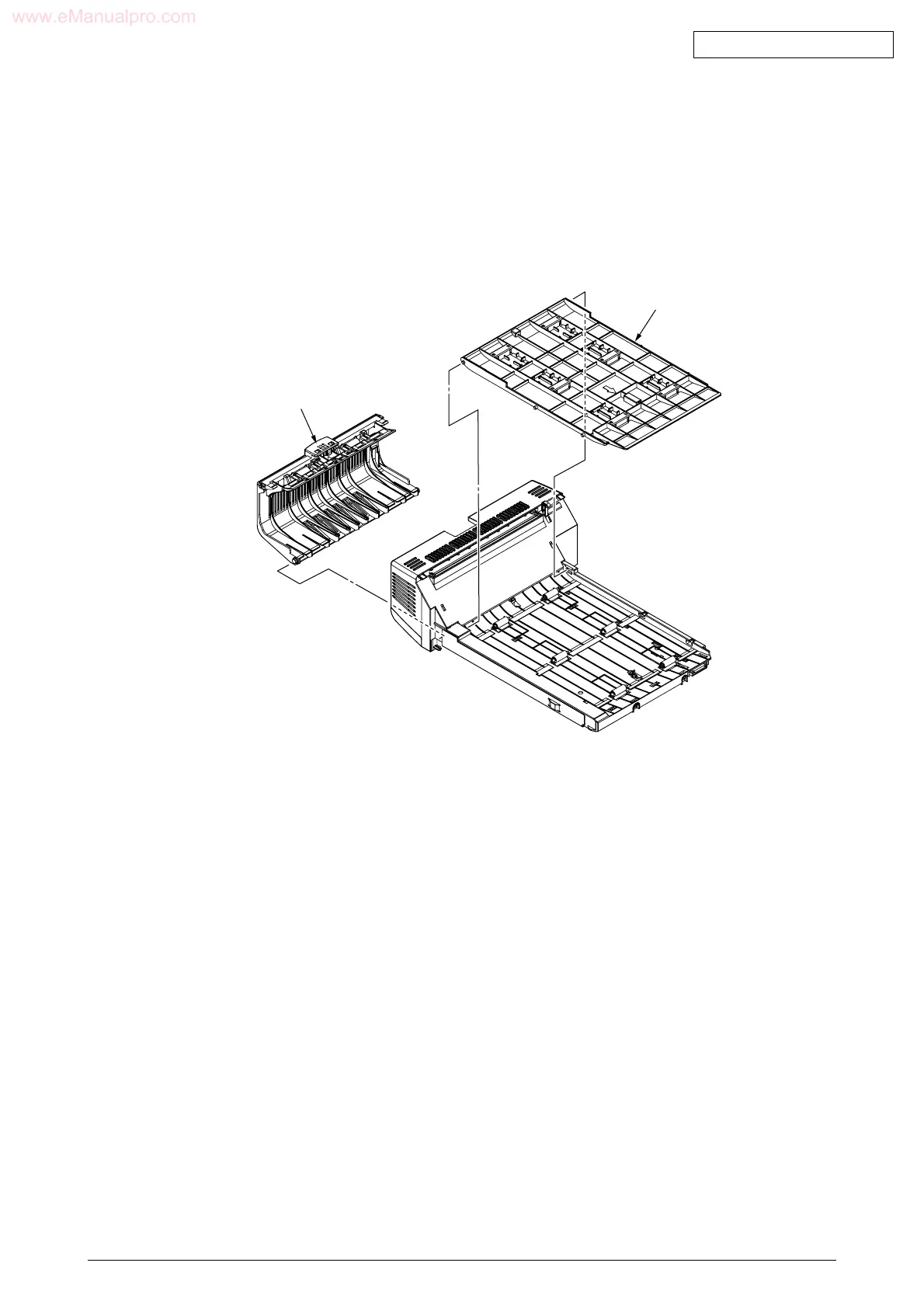

1.2 Upper Assy / Rear Assy
(1) Remove the duplex unit (see section 2.2.20).
(2) Warping the upper assy 1, detach it.
(3) Warping the rear assy 2, detach it.
1
2
