2.2.21 Fuser Unit
(1) Open the top cover 1.
(2) Rise the fuser unit lock levers (two blue portions) 2 in the directions of the arrows to detach the
fuser unit 3.
(Blue)
1
3
2

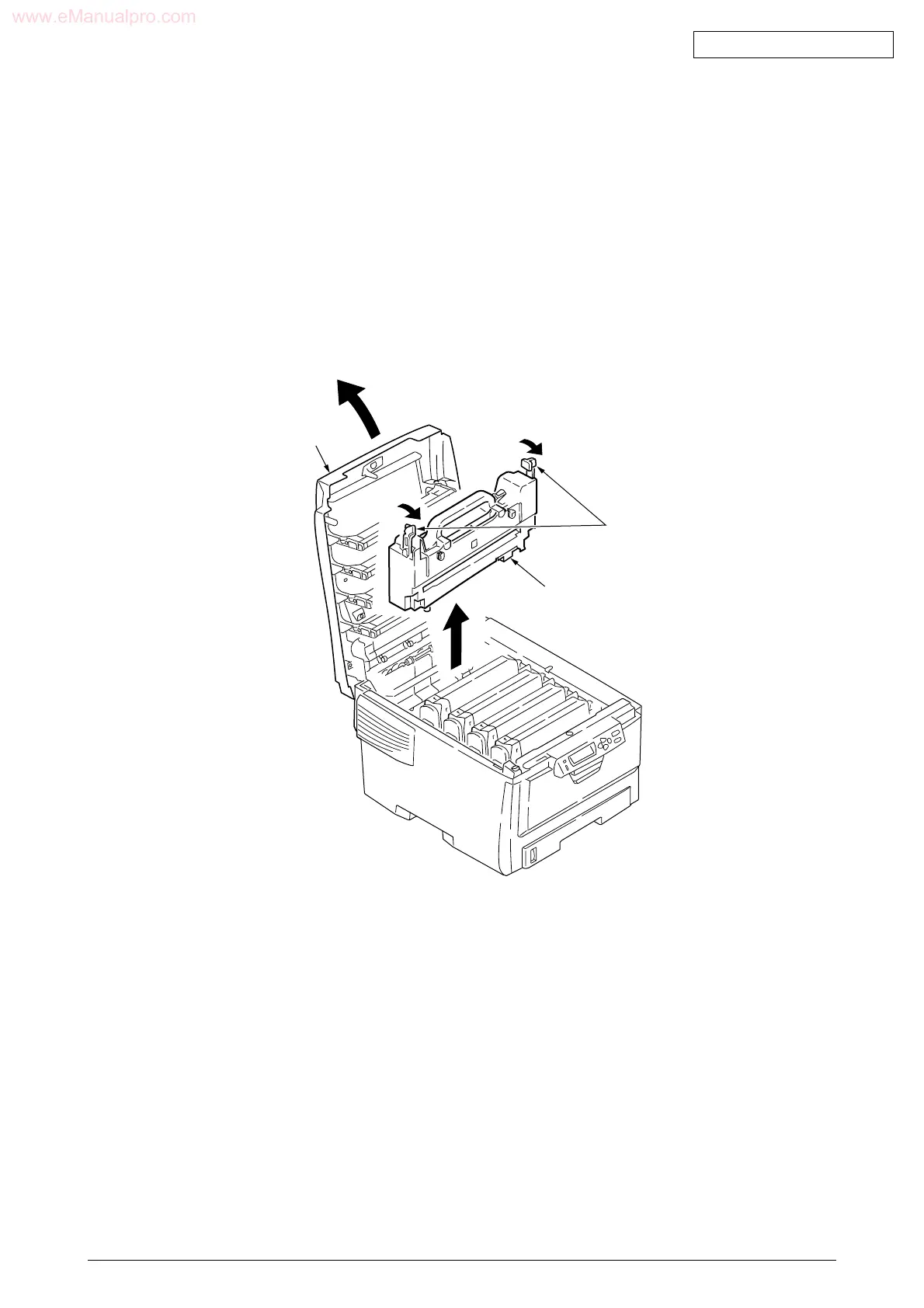

Figure 2-2-21 Fuser Unit
