2.2 Part Replacement Procedures
This section describes the procedures for replacing the parts and assemblies shown in the
following disassembly chart:
2.2.1 Top Cover
(1) Open the top cover assy.
(2) Remove the eight screws 1 to detach the cable cover 2 and the top cover 3.
1
1
1
3
2

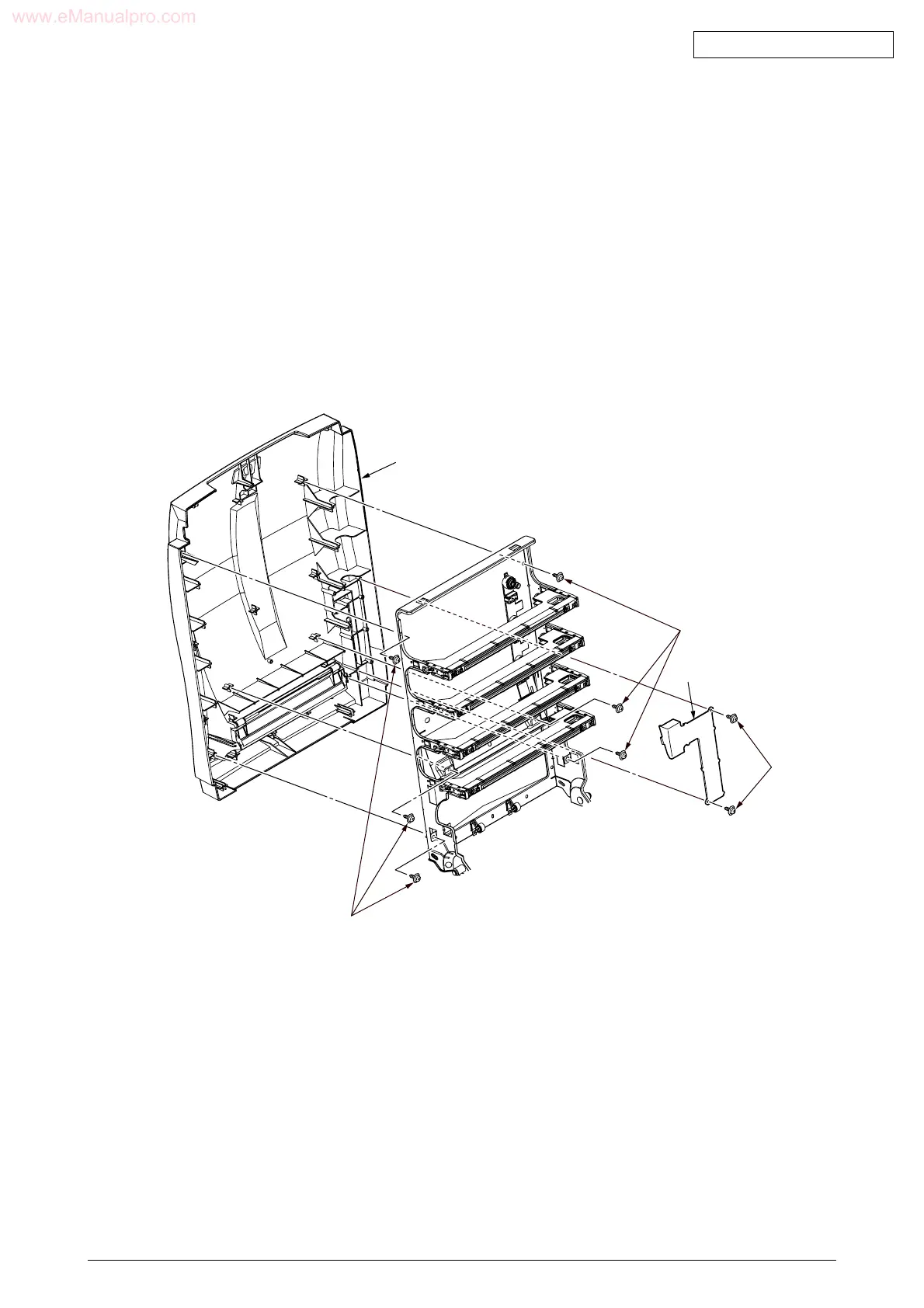

Figure 2-2-1 Top Cover
