42049001TH Rev.1 33 /
Oki Data CONFIDENTIAL
2.2.17 Feeder Unit / Board-RSF / Multipurpose Tray (MPT) Hopping Roller / Multipurpose Tray (MPT)
Frame Separator / Cover-Front
(1) Open the top cover.
(2) Remove the left side cover (see section 2.2.3).
(3) Make plate-shield (GDI) and connector removal (see section 2.2.7).
(4) Disengage the claws of the stay L 1 and the stay R 2, sliding the feeder unit 3, detach the
feeder unit.
(5) Remove the cover sensor 4 by releasing claw engagement.
(6) Make connector removal to detach the board-RSF 5.
(7) Remove the lever 6 by turning it until it is unlocked.
(8) Remove the two front claws to detach the feed assy 7.
(9) Remove the two lock shafts 8 and the two springs 9 and disengage the four claws to detach
the hopping roller assy 0.
(10) Remove the hopping roller shaft A.
(11) Remove the two supports to detach the MPT frame separator B, and remove the spring C.

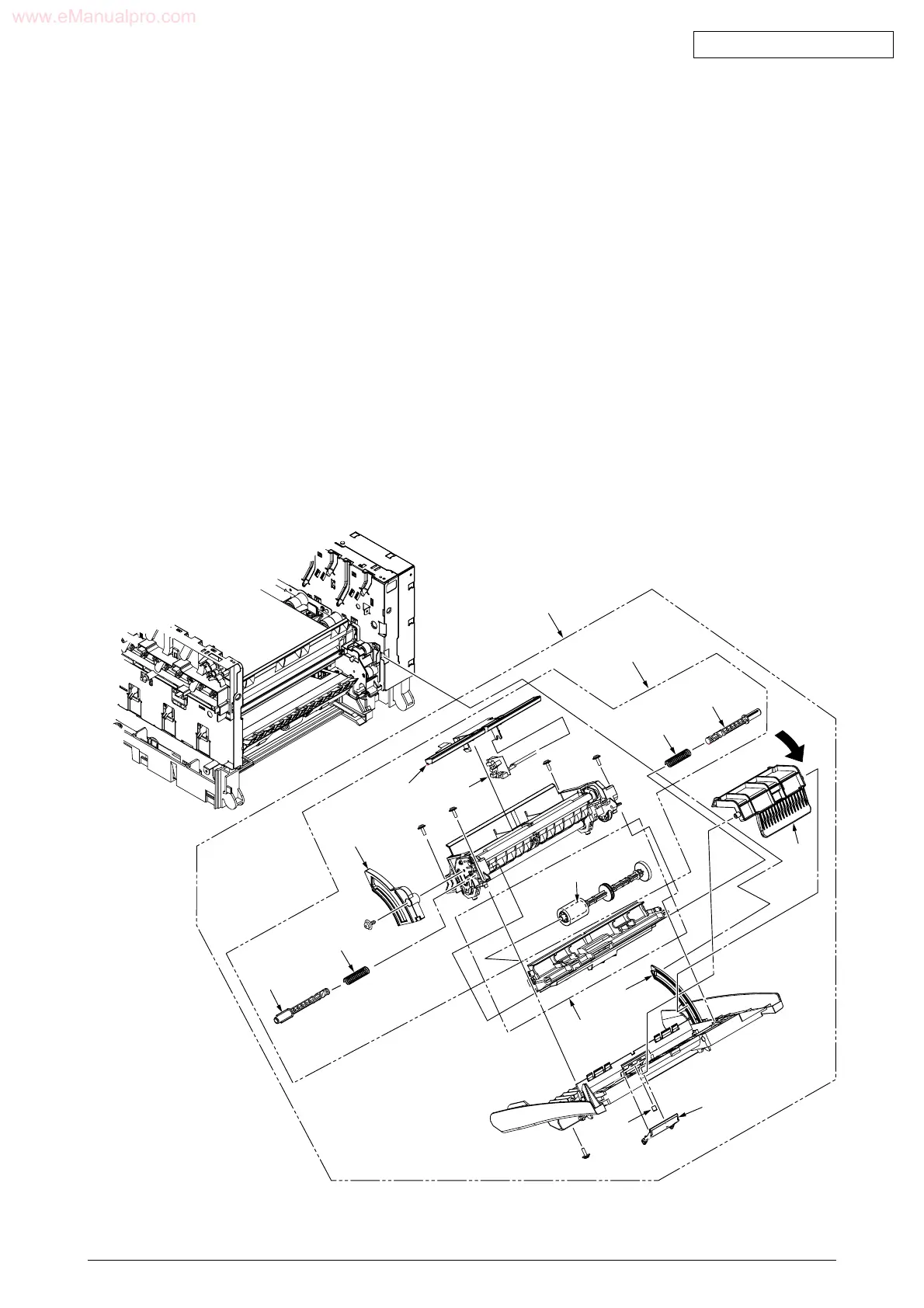

Figure 2-2-17 Feeder Unit / Board-RSF / MPT Hopping Roller / MPT Frame Separator / Cover-Front
8
0
8
9
4
9
1
6
5
C
B
2
A
3
7
To Next Page
