42049001TH Rev.1 30 /
Oki Data CONFIDENTIAL
2.2.14 Guide - Eject Assy / Color Registration Assy / Board-RSM
(1) Remove the left side cover, the write side cover, the rear cover and the top cover unit (see
sections 2.2.2, 2.2.3, 2.2.5 and 2.2.9).
(2) Remove the engine controller PWB, the controller PWB and the film [see sections 2.2.7 and
2.2.8, and step (3) of section 2.2.12].
(3) Unscrew the two screws 1 to remove the plate-heat 2.
(4) Remove the two springs - torsion 3 and disengage the latches to remove the cover-driver 4.
(5) Make two-screw 5 and connector removal to detach the color registration assy 6.
(6) Make two-screw 7 and connector removal to detach the guide eject assy 8.
(7) Make screw 9 and connector removal to detach the board-RSM 0.

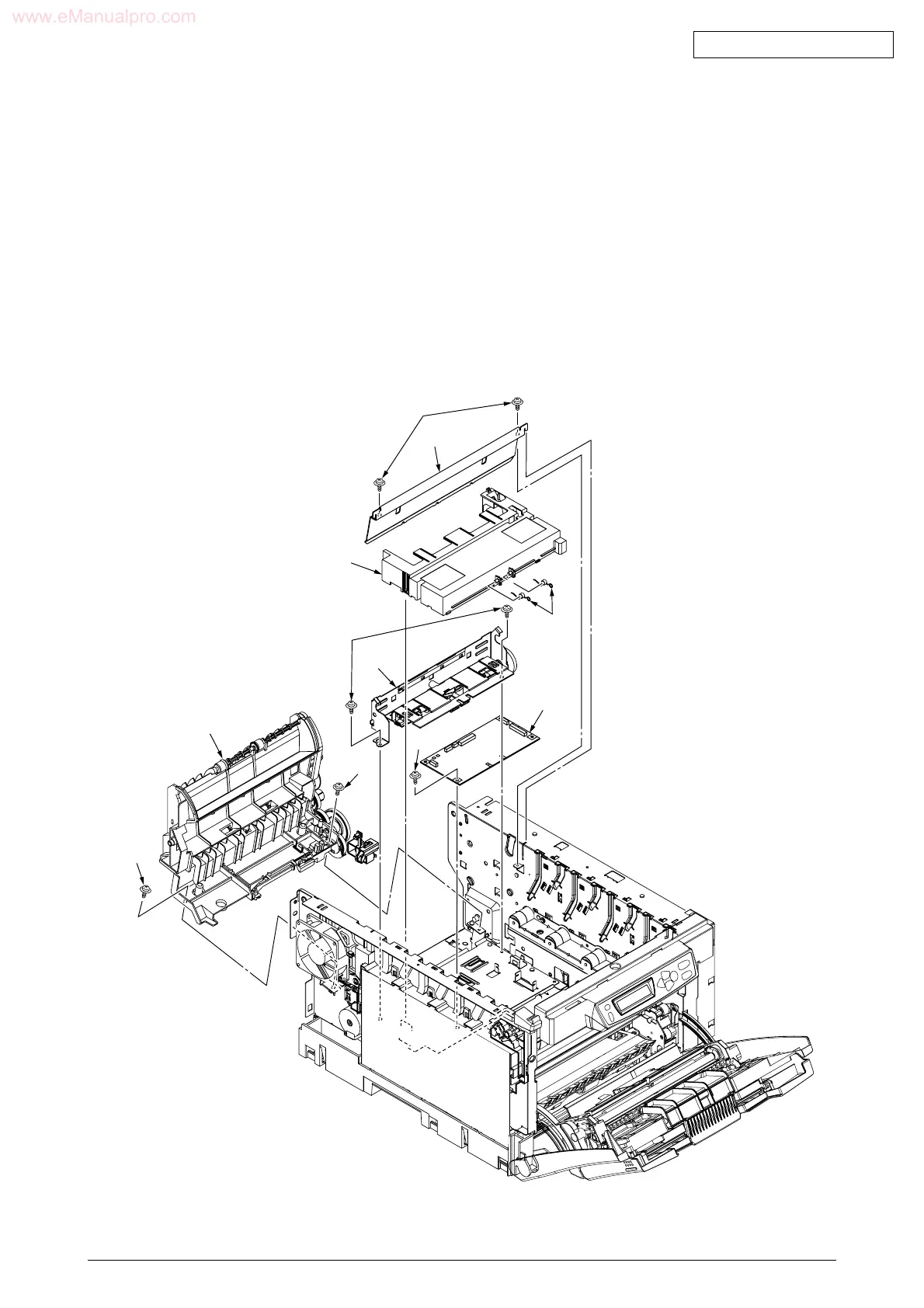

Figure 2-2-14 Guide - Eject Assy / Color Registration Assy / Board-RSM
1
2
3
5
6
0
9
7
7
8
4
