Chapter 3: Paper handling
3-5

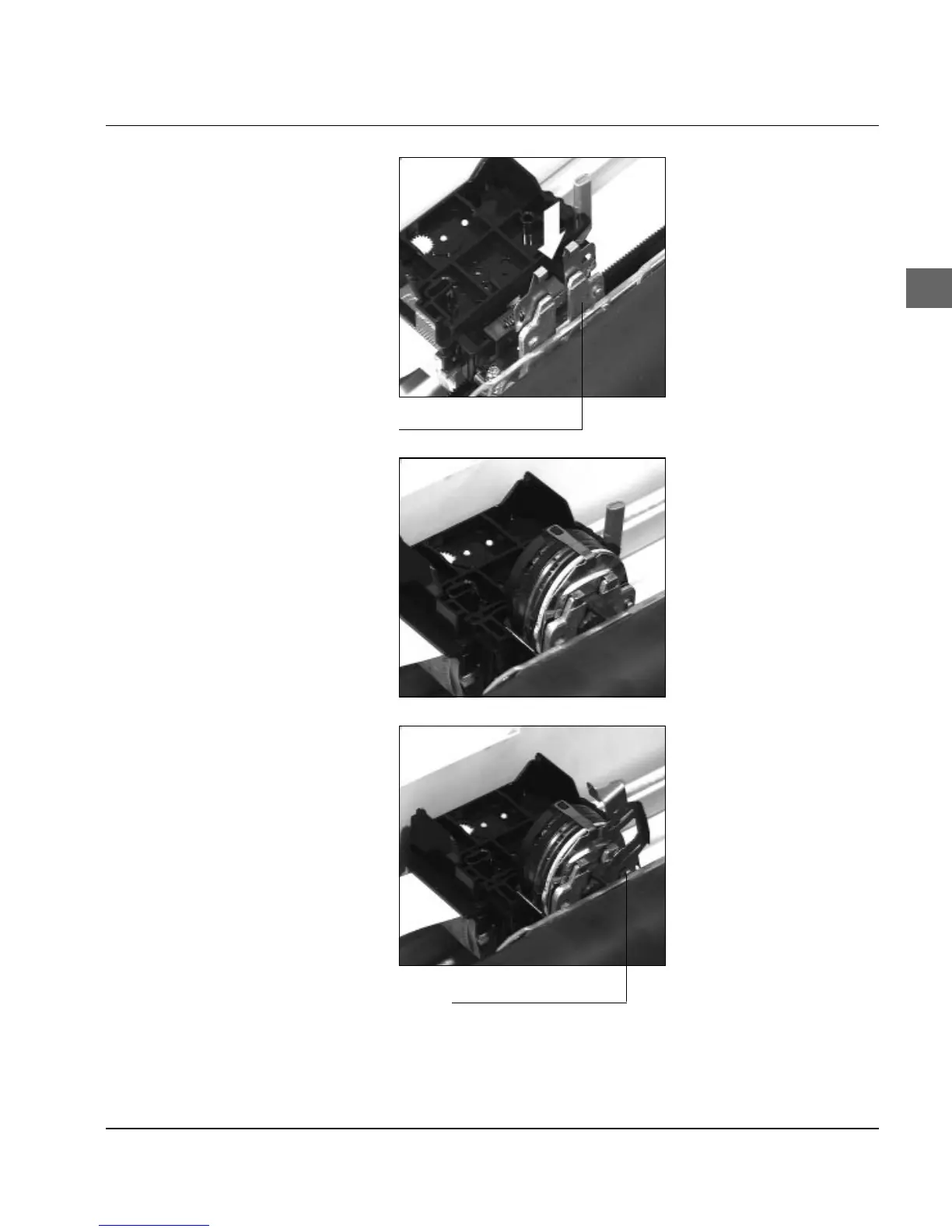

Print head holder
Hole in locking plate
7. Insert the plate in front of the
print head holder, making
sure that the plate fits even-
ly.
8. Replace the print head in the
slot of the print head car-
riage.
9. Place the locking plate onto
the print head holder, mak-
ing sure that the pin on the
left of the holder properly
fits into the hole in the lock-
ing plate.
