Oki MICROLINE 8810

Microline 8810 User’s Guide
18
Note Printing envelopes requires use of the sheet guide (1) instead of the
Auto Align mode. See “Disabling Auto Align” on page 69.
Minimum Print Margins
• 1/4-inch (6.4 mm) on all sides
Individual Sheets
Size
• Minimum Width x Length
2.2" (55 mm) x 2.8" (70 mm)
3.9" (100 mm) x 2.8" (70mm) Auto Align Mode
• Maximum Width x Length
16.5" (420 mm) x 16.5" (420 mm)
14.3" (364 mm) x 16.5" (420 mm) Auto Align Mode
Weight Range
• 14 lb. to 56 lb. US Bond (52 to 210 g/m
2
)
Individual Multipart Forms
Size
• Minimum Width x Length
2.2" (55 mm) x 2.8" (70 mm)
3.9" (100 mm) x 2.8" (70mm) Auto Align Mode
• Maximum Width x Length
16.5" (420 mm) x 16.5" (420 mm)
14.3" (364 mm) x 16.5" (420 mm) Auto Align Mode
Thickness
• Up to 8-part forms (original + 7)
• Maximum Thickness: 0.0189” (0.48 mm)
Load Individual Sheets/Forms

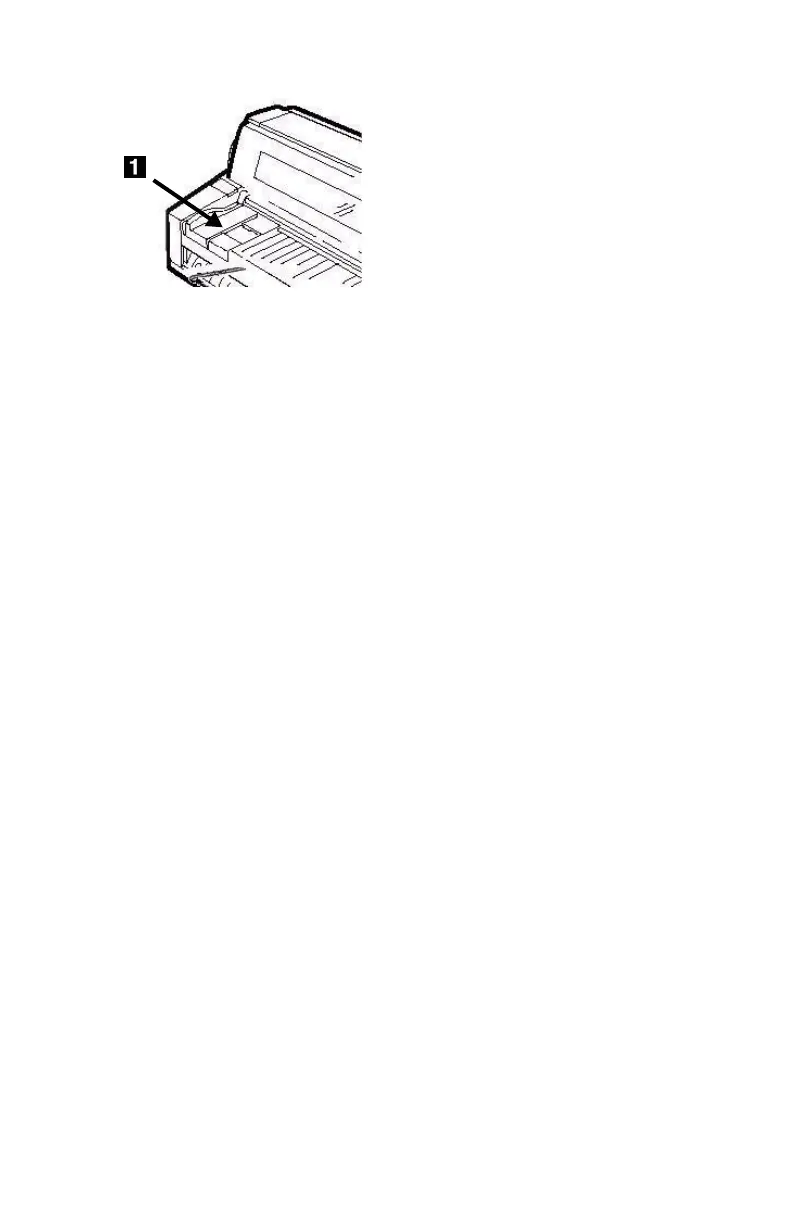

1. If you are using long paper, pull out the sheet supports (1).
