Microline 8810 User’s Guide
23

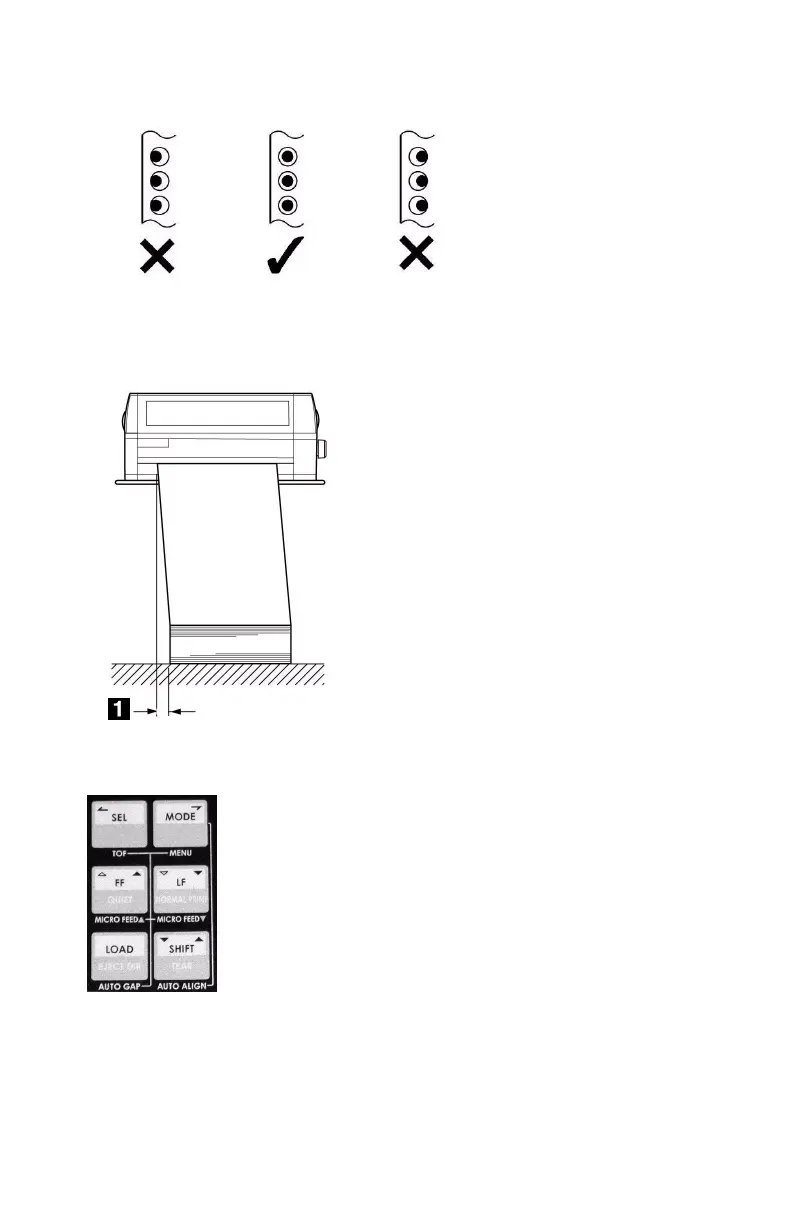

6. Close the tractor covers and fine tune the position of the right tractor
until the holes in the paper are centered on the pins, then push back the
right tractor lock lever.
7. Lower the platform.
8. Position the continuous forms stack below the printer with no more than
about 1 inch (3 cm) offset (1).
Switch between Single Sheets and Continuous Forms
Note If the optional Cut Sheet Feeder (CSF) and/or Rear Push Tractor are
installed, additional paper paths (e.g., Front CSF, Rear CSF, etc.)
appear on the display.

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
