Oki MICROLINE 8810 User Manual

Microline 8810 User’s Guide
69

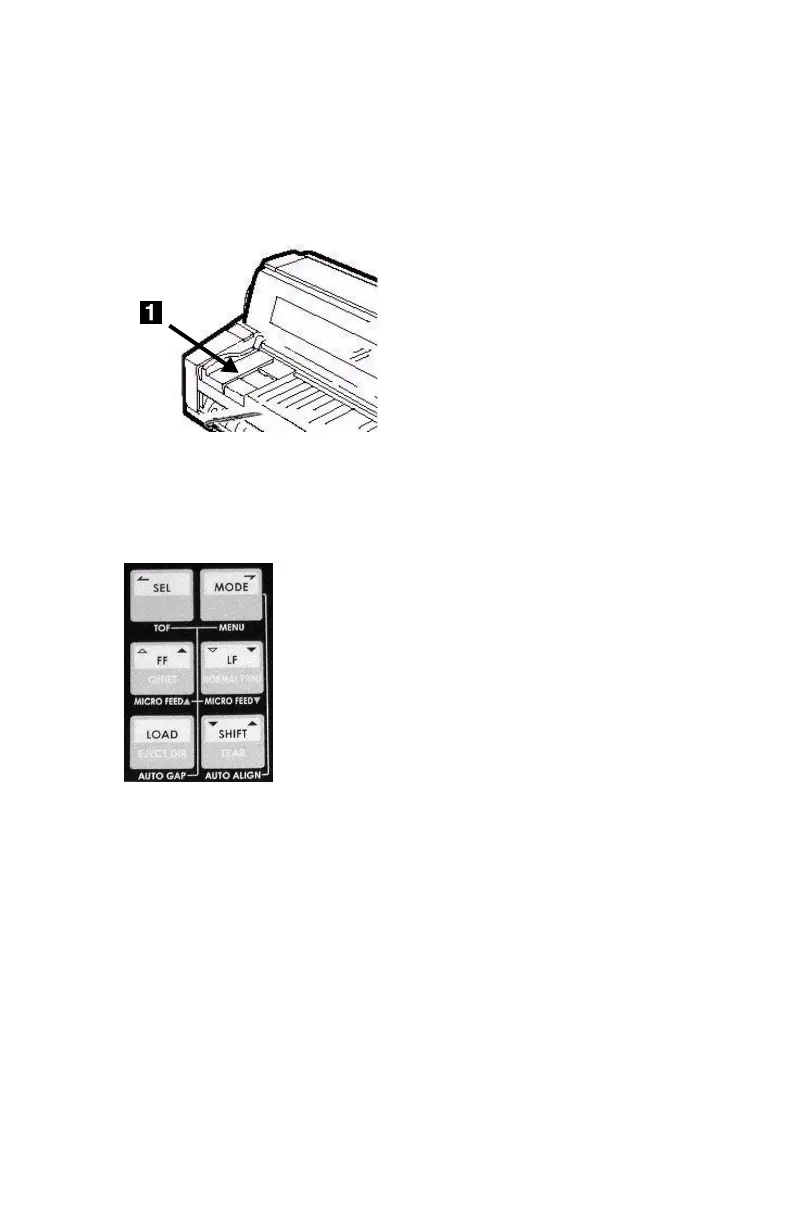

Auto Align
The printer is set at the factory for Auto Align enabled. This feature
automatically aligns single sheets or forms placed on the platform with the
platen as they are drawn into the printer.
Auto Align cannot be used with envelopes. To print envelopes, you must
disable Auto Align (see below), then use the sheet guide (1) to load and align
the envelope.
Disabling Auto Align
To disable Auto Align, you must go into the printer menu:
1. Press SEL.
The printer goes off-line.
2. Simultaneously press SHIFT and MODE.
The printer enters the Menu Mode. PRINTER CONTROL displays.
3. Simultaneously press SHIFT and FF repeatedly until MANUAL FEED
displays.
4. Press FF repeatedly until
AUTO ALIGN displays.
5. Press MODE repeatedly until the setting
INVALID displays.
6. Press LOAD to save your new setting and exit the menu mode.

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
