Microline 8810 User’s Guide
71
5. Press MODE repeatedly until the setting you wish to engage displays:
2.12 mm (1/12”), 3.18 mm (1/8”), 6.35 mm (1/4”), 7.62 mm (3/10”),
8.47 mm (1/3”), 10.58 mm (5/12”), 21.59 mm (0.85"), 23.28 mm
(11/12”), 25.4 mm (1”), or 27.52 mm (13/12”).
6. Press LOAD: this saves your setting and exits the menu mode.
Use 1Chr Set Pos
You can set and use two different custom Top of Forms:
• Front Feed (continuous forms)
• Manual Feed (single forms).
Front Feed (Continuous Forms)

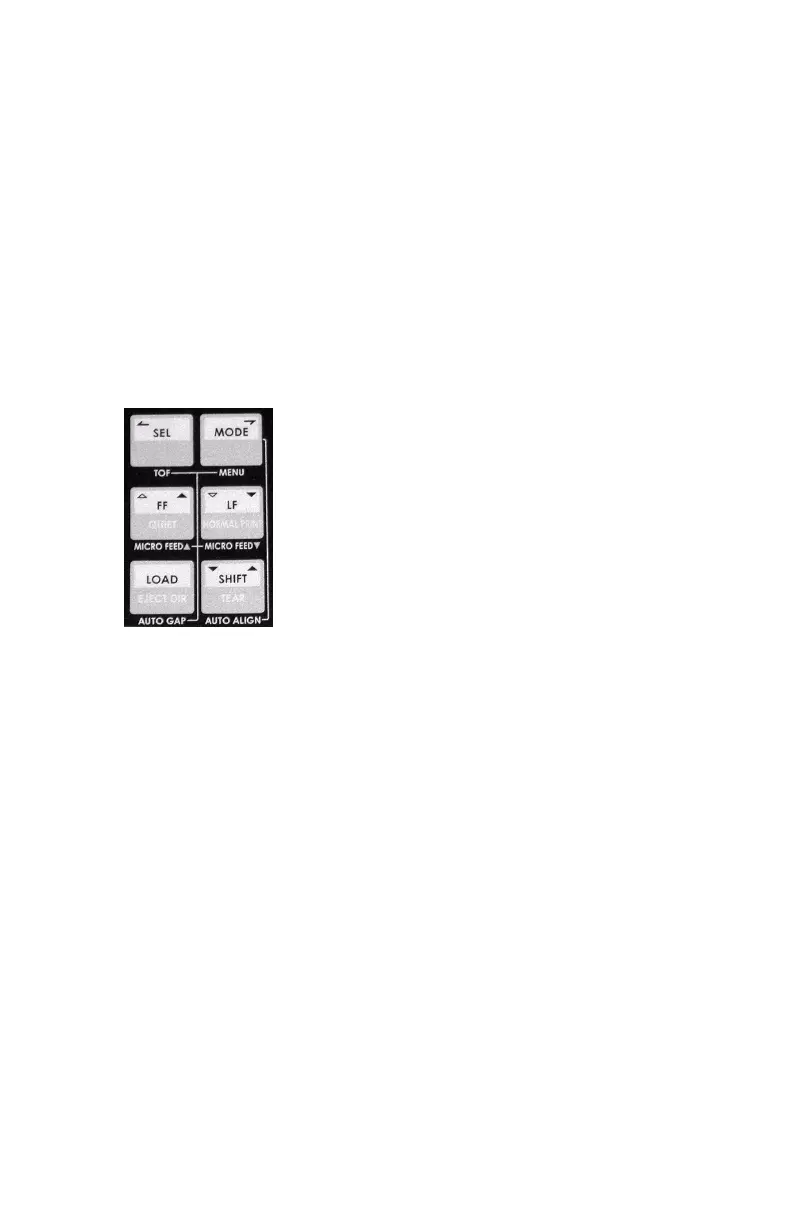

1. Make sure the printer is set to the Front Feed path.
2. Press SEL, then press LOAD to park the continuous forms.
3. Simultaneously press SHIFT and SEL.
The continuous forms move to the printer’s default TOF position
(1/4-inch [6.4 mm]).
The display reads 1CHR. SET POS.
4. Adjust the print start position as follows:
a. If you are fine tuning the TOF you set for a preprinted form, you
can move the form to the position you last set for Front Feed 1Chr.
Set Pos. by pressing the FF switch.
b. To move the TOF further down on the page (print paper advances
further into the printer):
– In 1/144-inch (0.18 mm) increments: press and hold the SHIFT
switch, then press FF.
– In 10/144-inch (1.75 mm) increments: press and hold the SHIFT
switch, then press SEL.
– One line at a time: press LF.

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
