Microline 8810 User’s Guide
17
Loading Print Media
Individual Sheets/Forms (“MANUAL”)
The printer is set at the factory for
•single sheets/forms
• Auto Align mode
• Normal print mode
• automatic printhead gap
Specifications
Individual Sheets/Forms, for Use with Auto Align Mode
IMPORTANT!

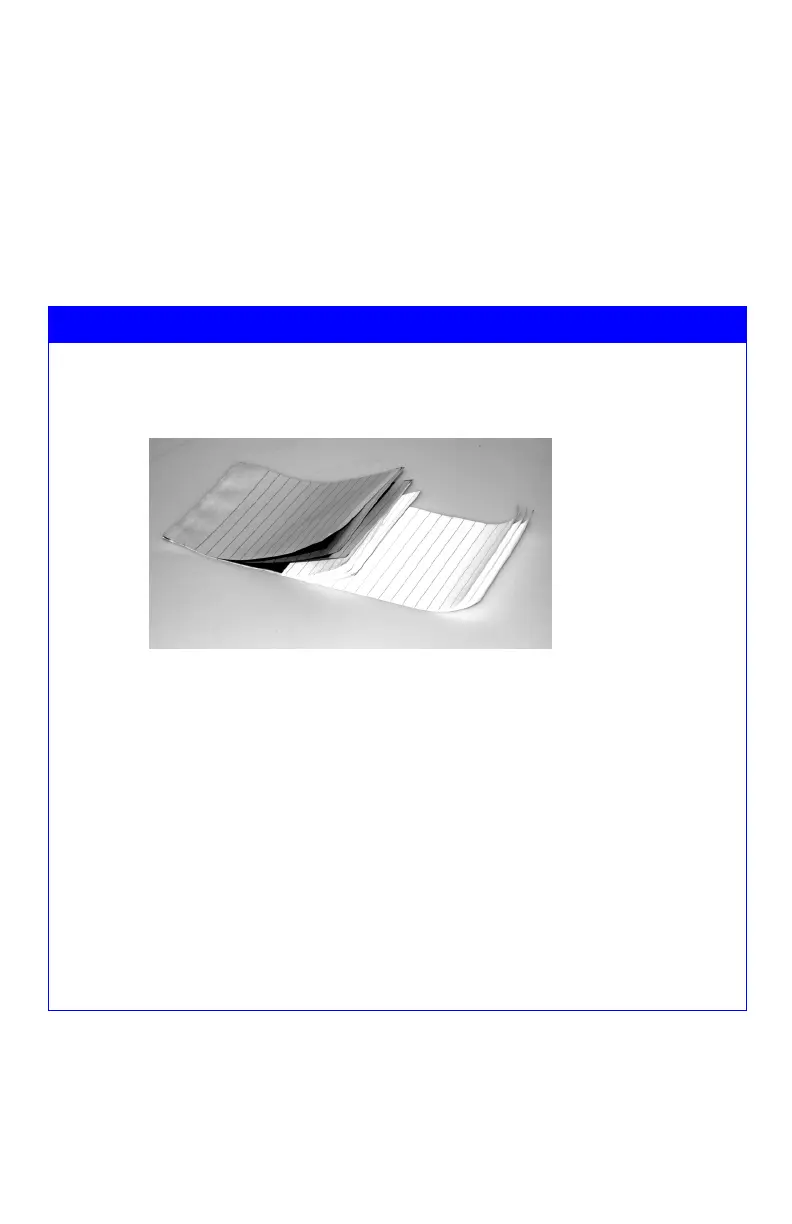

If you are using individual multi-part forms which have multiple
pages of differing lengths such as the one shown below, switch to
the rear Eject Direction to eliminate possible jams.
• To temporarily switch, press the LOAD/EJECT DIR switch.
• To permanently change to the rear Eject Direction, go into the
menu and change the setting for Eject Dir. in the Manual Feed (or
CSF Front and/or CSF Rear if these options are installed) group to
Rear:
1. Press SEL to deselect the printer.
2. Press MODE + SHIFT simultaneously.
3. Press and hold SHIFT, then press FF repeatedly until you see
Manual Feed on the display.
4. Press FF repeatedly until you see Eject Dir. on the display.
5. Press MODE to change the setting to Rear.
6. Press LOAD to save the setting and exit the menu.

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
