Oki MICROLINE 8810 User Manual

Microline 8810 User’s Guide
70

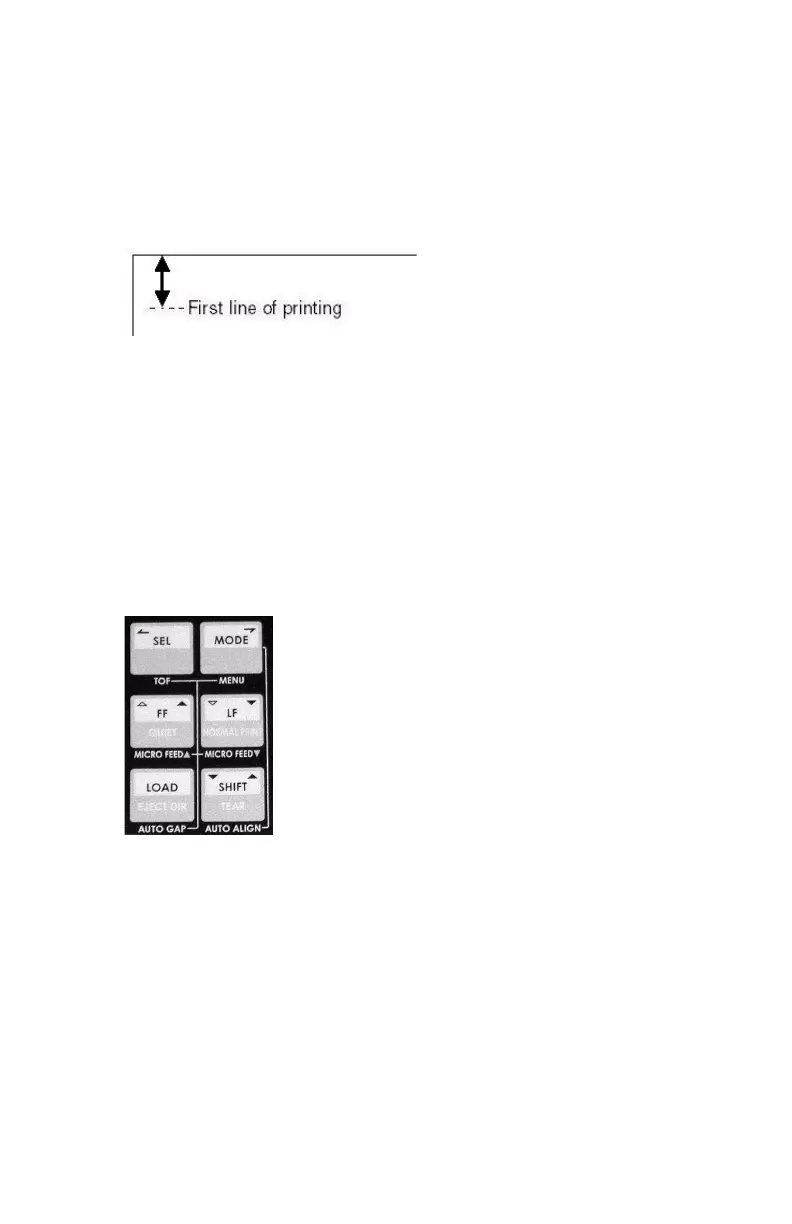

Set Top of Form (TOF)
General Information
The default top of form is set in the printer menu.
The factory default for TOF is 1/4-inch (6.4 mm), equivalent to the distance
down from the top of the sheet to the horizontal midpoint of the first line of
printed characters.
You can establish one custom TOF setting for each feed path (Manual and
Front) and store it in the printer’s memory as 1Chr Set Pos. This selection
will then automatically appear as the setting for TOF for the corresponding
group in the Menu.
You can also use the control panel switches to set a temporary TOF for one
sheet or one continuous form.
Use the Printer Menu
Note The printer default for TOF is 1/4-inch (6.4 mm).
1. Press SEL.
The printer goes off-line.
2. Simultaneously press SHIFT and MODE.
The printer enters the Menu.
PRINTER CONTROL displays.
3. Press and hold SHIFT, then press FF repeatedly until the feed path for
which you wish to change the TOF appears: MANUAL FEED or FRONT
FEED
.
4. Press FF repeatedly until TOF displays.

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
