Microline 8810 User’s Guide
72
c. To move the TOF further up on the page (print paper retracts
further out of the printer):

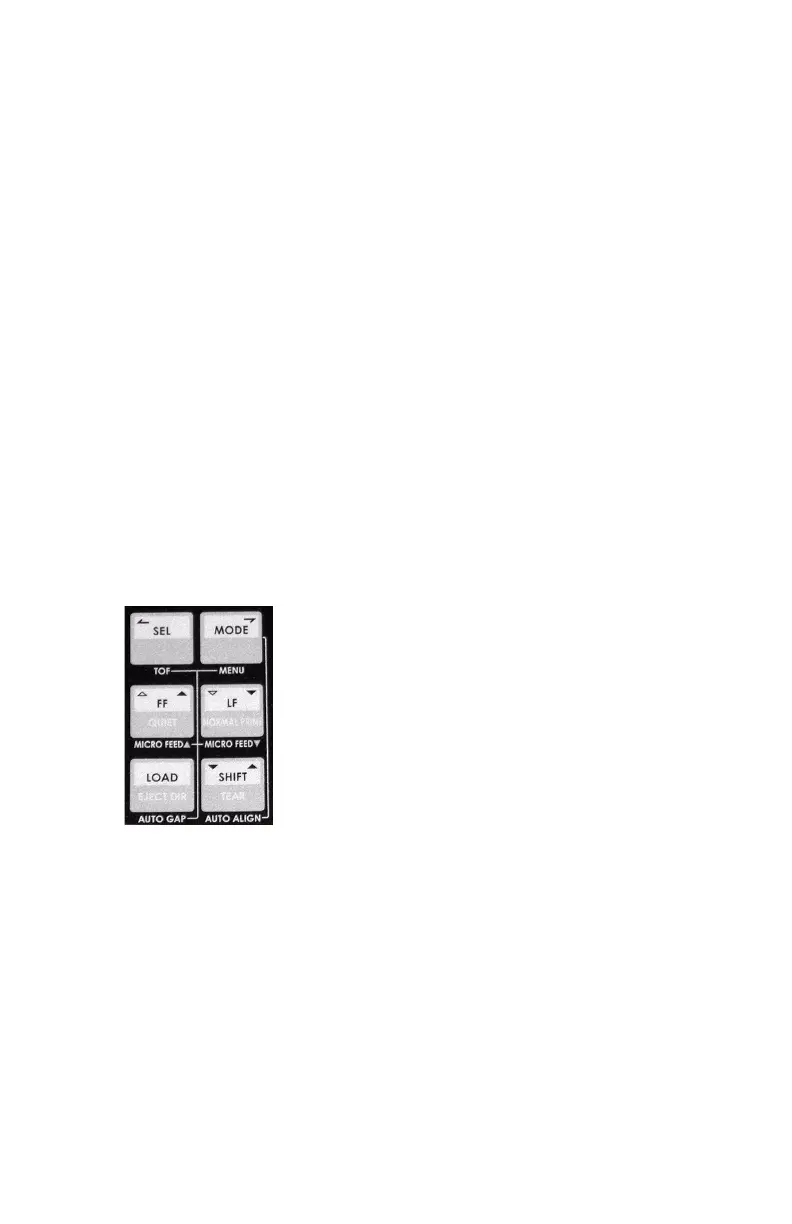

In 1/144-inch (0.18 mm) increments: press and hold the SHIFT
switch, then press LF.
In 10/144-inch (1.75 mm) increments: press and hold the SHIFT
switch, then press MODE.
5. Store the TOF position in the printer’s memory:
a. To store the position as the 1Chr. Set Pos setting, press the SEL
switch. The setting will be retained, even if you turn the printer off,
until you use this procedure to change the setting. This also
automatically sets the TOF setting in the Front Feed group to 1Chr.
Set Pos.
Note If you reset the printer to the factory defaults, the 1Chr. Set
Pos you have established will be deleted.
b. To store the position in the printer’s memory only until it is turned
off or it receives an I-Prime signal, press the LOAD switch.
6. Press SEL to return the printer to the on-line state.
Use 1Chr Set Pos
Manual Feed (Single Sheets/Forms)
1. Make sure the printer is set to the Manual Feed path.
2. Press SEL, then press LOAD to remove the paper from the manual feed
path.
3. Simultaneously press SHIFT and SEL.
The SEL light starts blinking and the display reads
1CHR. SET MODE
INSERT PAPER.
4. Load a sheet/form on the platform.
The sheet/form advances to the printer’s default TOF (1/4-inch [6.4
mm]) and the display reads 1CHR. SET POS.

Table of Contents

Other manuals for Oki MICROLINE 8810

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Oki MICROLINE 8810 and is the answer not in the manual?

Oki MICROLINE 8810 Specifications

General IconGeneral
ColorNo
Built-in barcodesEAN13, PostNet, UPC-A, UPC-E
Maximum number of copies8 copies
Fonts included5
Media thickness0.48 mm
Dimensions (WxDxH)598 x 397 x 235 mm
Power requirements120V-240V (±10%, 50Hz/60Hz)
Connectivity technologyWired
Compatible operating systemsWindows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print directionBi-directional
Maximum duty cycle24000 pages per month
Mean time between failures (MTBF)10000 h
Sound pressure level (printing)55.5 dB
Power consumption (standby)25 W
Power consumption (typical)120 W
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)30 - 85 %
