Microline 8810 User’s Guide
22

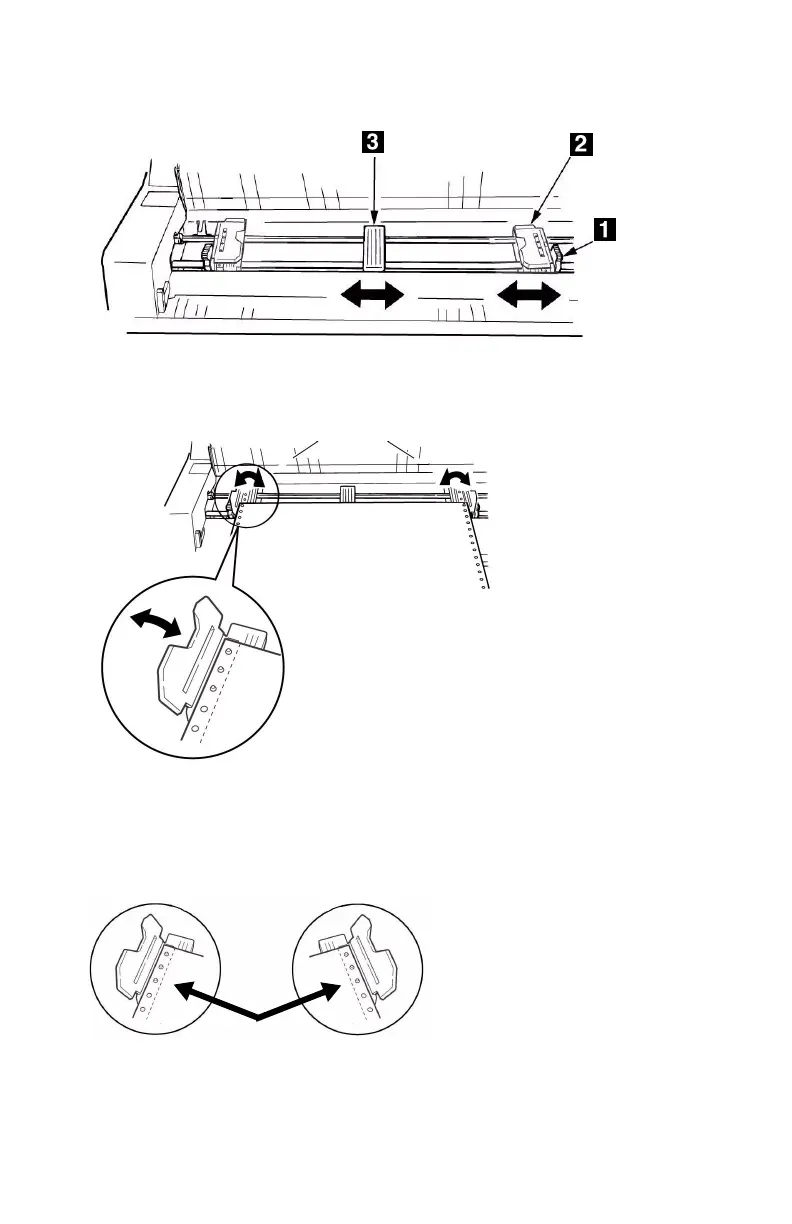

4. Lift the lock lever (1) on the right tractor (2) and move the tractor over
to correspond to the width of the continuous forms you are using.
Center the paper support (3) between the two tractors.
5. Open both tractor covers and place the first three holes in the
continuous forms paper over the pins.
Important!
Make sure that an equal number of paper holes are engaged
on each tractor. If not, the paper will jam.

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
