Microline 8810 User’s Guide
66

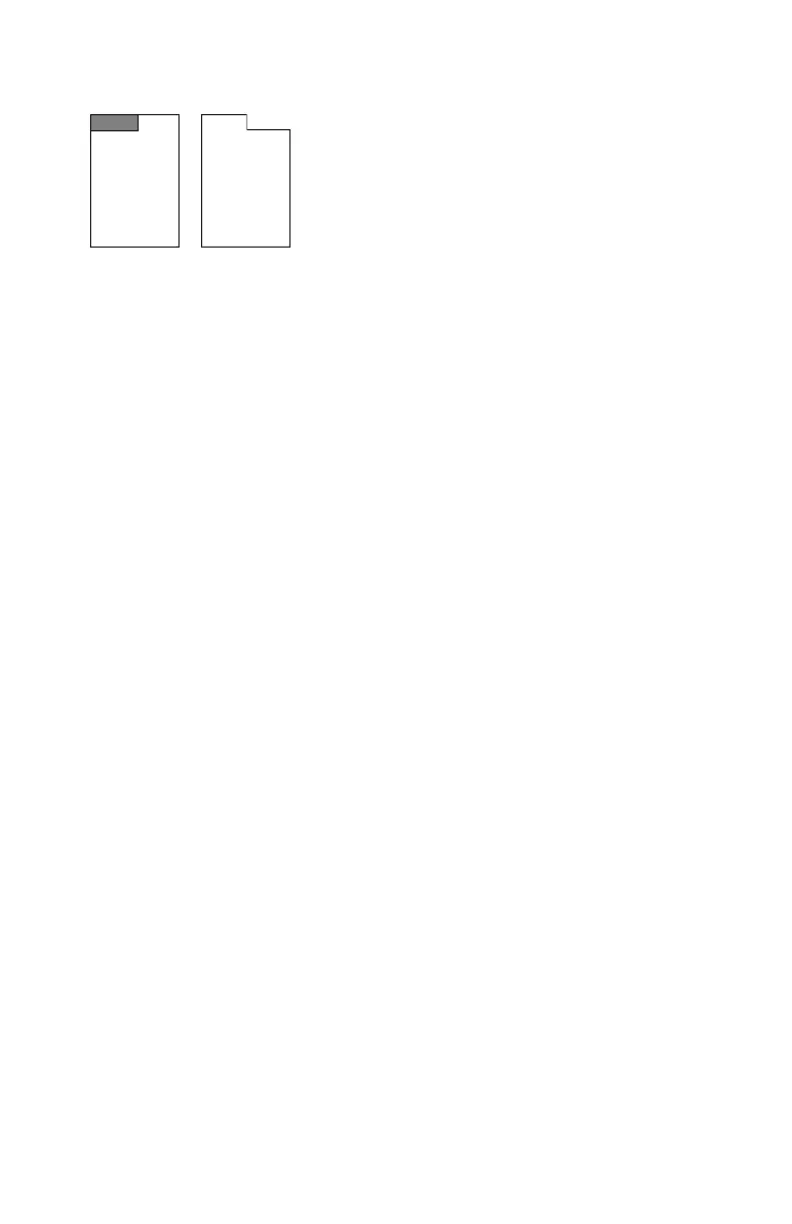

anomalies at the top such as a large dark area on one side or a
cutout. Such types of forms defeat the skew sensor.
Serial Data
Applies only when the optional RS-232C Serial Interface is
installed.
Sets the serial data length: 8Bits [the default] or 7Bits.
Skp Ovr Binding
Choose Invalid, Valid 1 [the default] or Valid 2.
Valid 1
• Continuous forms only
• before Form Feeding
• before Perforation Skip
• line feeding of 18 mm (.71") or more
Valid 2
• Continuous forms and manual feed
• before Form Feeding
Skip Over Perf.
Sets what happens when the printer comes within 1-inch (25
mm) of the bottom of the page. The default is No, for use when
your software has its own page formatting controls. Change to
Yes if you want the printer to go to the next page when it comes
within 1” (25 mm) of the bottom of the page.
Style
The default is Normal. Choose Italic if you want the printed
characters to be slanted.
Tear Mode
Applies only when the optional Rear Push Tractor is installed.
Form Unusable with Auto Align.bmp

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
