Microline 8810 User’s Guide
93

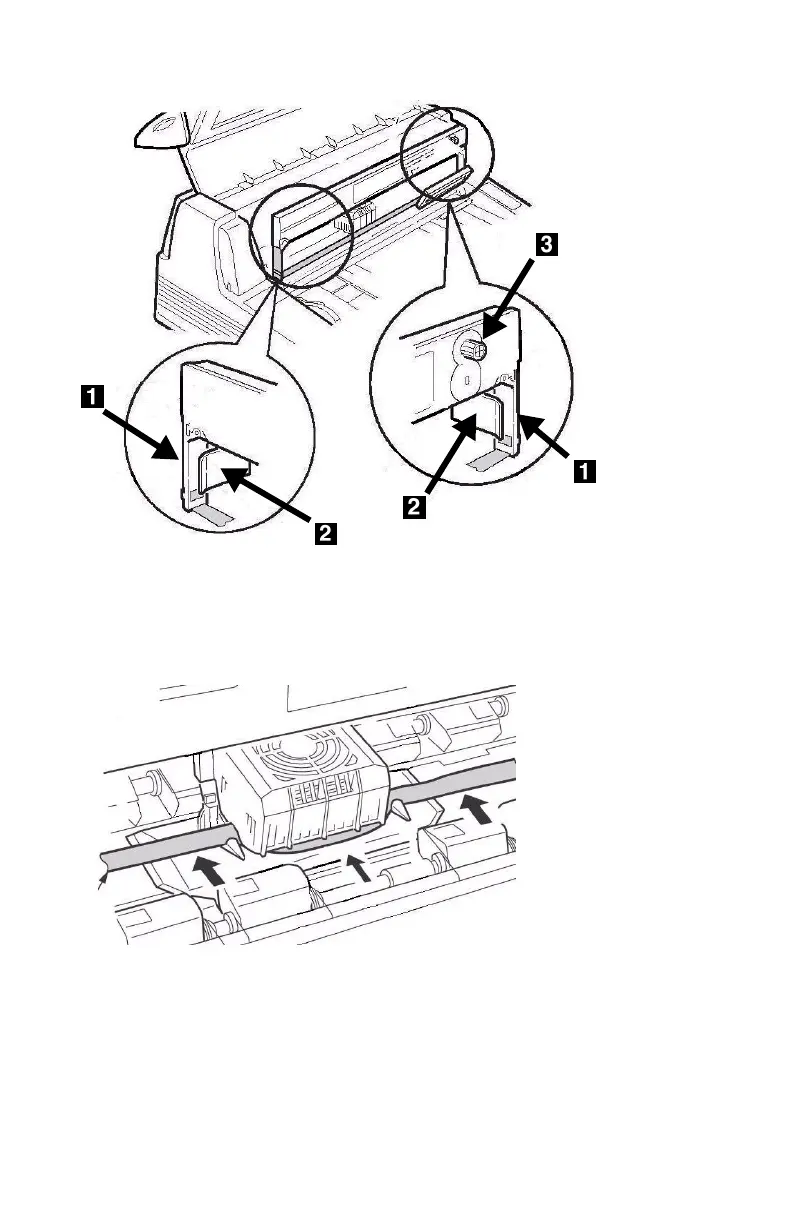

8. Feed the ribbon arms (1) in beside the guides (2), position the take-up
knob (3) over the pin, then press the cartridge in firmly at either end.
9. Pull the ribbon out a bit at the left end of the cartridge to give some
slack, then slide the ribbon underneath the printhead. Be careful that
the ribbon is not twisted, folded or pulled off the ribbon arms during this
process.
