%Installing the Optional Pull Tractor
Installing the Optional Pull Tractor
The optional pull tractor includes the tractor assembly and a special, high-top access cover. The pull
tractor is required for feeding continuous-form paper or labels from the bottom of the printer. You
can also use the pull tractor together with the built-in push tractor for feeding paper in from the
rear to provide more precise paper control.
Make sure the Form Tear-Off feature is turned off in the menu before installing and using this
option.

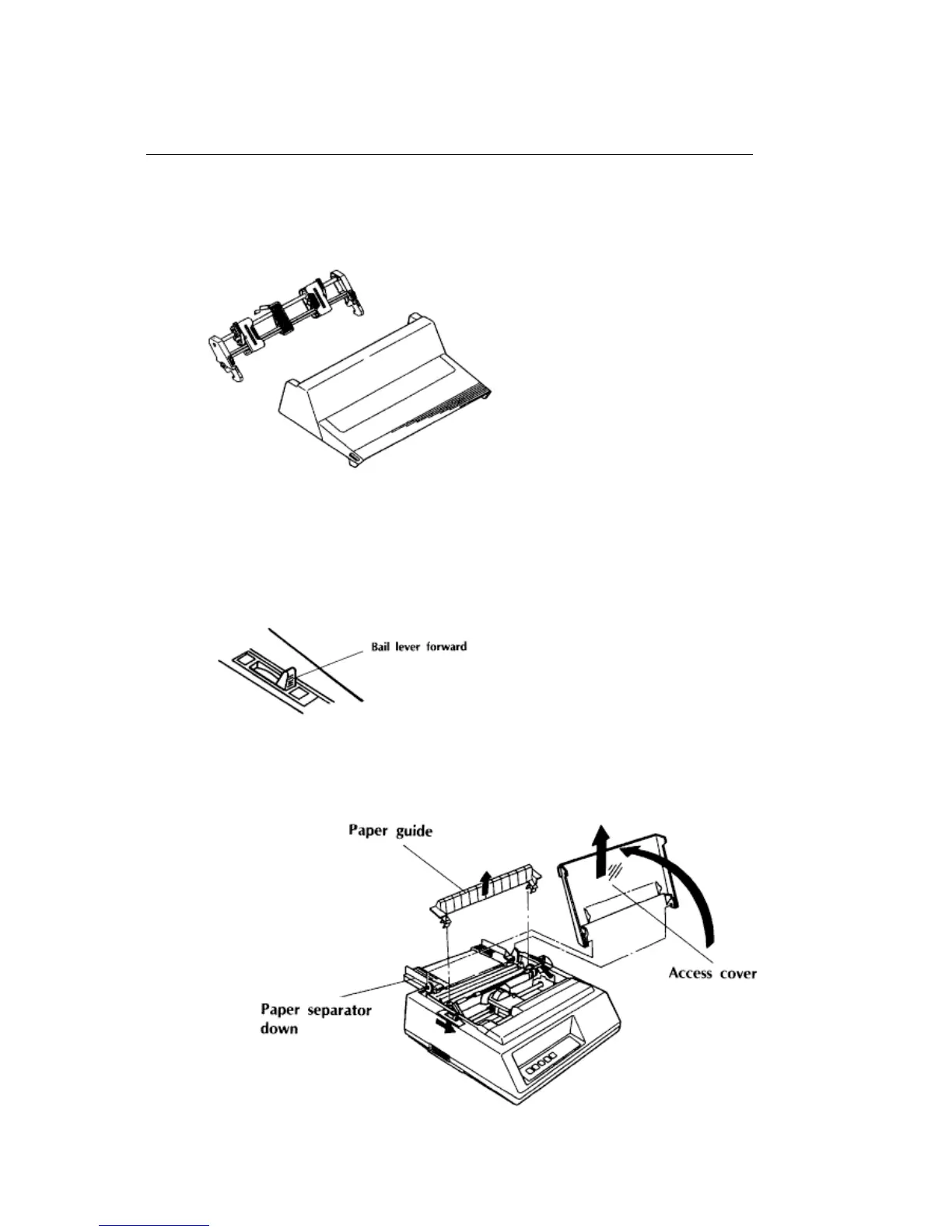

1.Turn the printer OFF.
2.Make sure the bail lever is in the forward position and the paper separator is down in the tractor
feed position.
3.Remove the access cover by lifting it up and detaching it from the pins at either side. Put it
aside_youll be replacing it with the access cover supplied with your pull tractor.
4.Remove the paper guide by pivoting it back until it unclips from the platen shaft. Then lift it off the
printer. Store it with the access cover_the paper guide isnt used with the pull tractor.
ML 380 ( 96-02-03 )
