Horizontal Print Positions
Example
Suppose you have the LQ print mode engaged and want to instruct the printer to move the print position

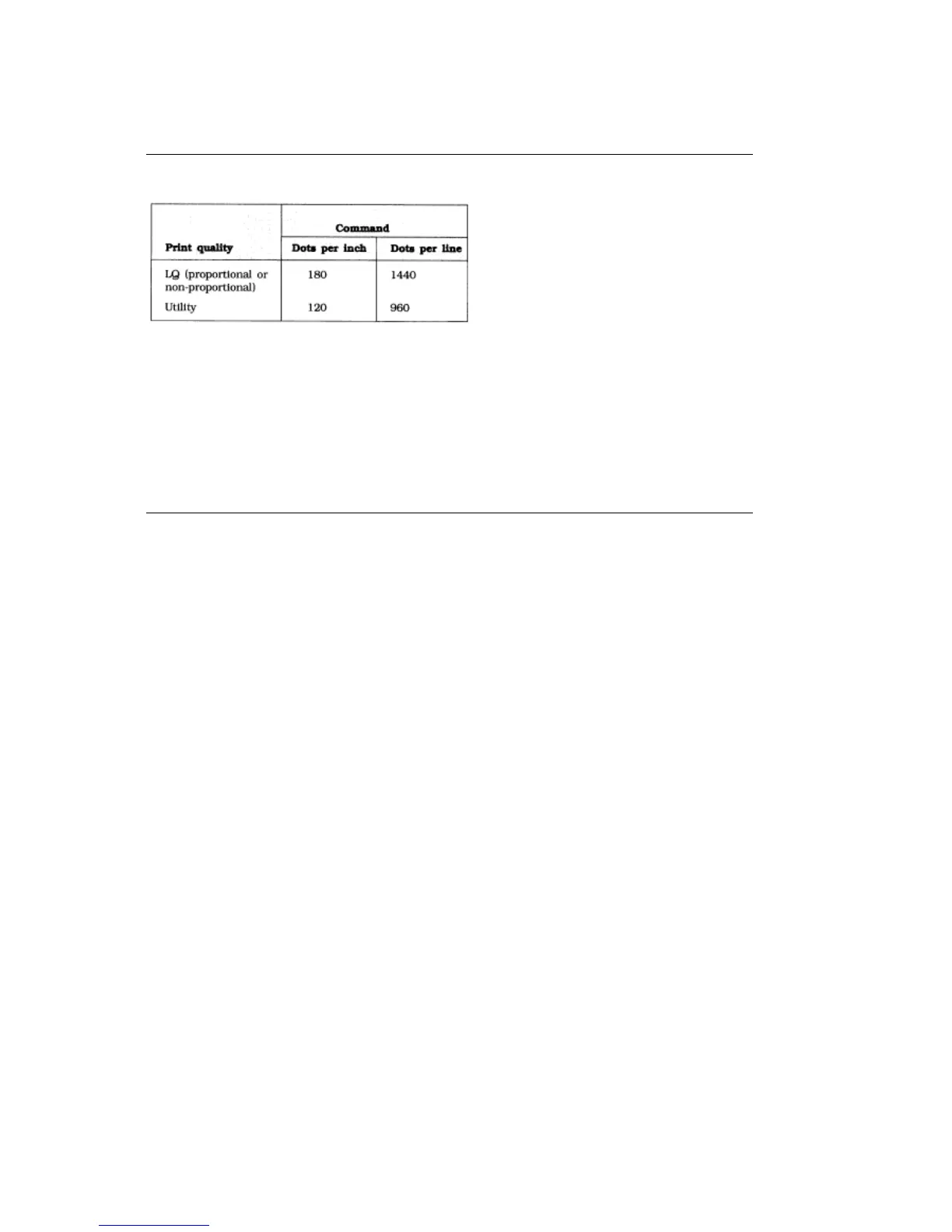

2 inches to the left of the current position. From the table, the number of dots per inch in the LQ print
mode is 180. Multiply 2 inches by 180 dots per inch to obtain 360 dots. Subtract this from 65,536 to
produce 65,176. Divide this by 256: this yields a value of 254 for n2 and a value of 152 for n1. Converting
these decimal values to hexadecimal, n1 then becomes 98 and n2 becomes FE.When you have
underlining engaged, the spaces generated by these horizontal dot position commands will not be
underlined.
ML 380 ( 96-02-03 )
