(7) Pullthebottomofthecoveroutward,releasethelatch,andremovethecover.

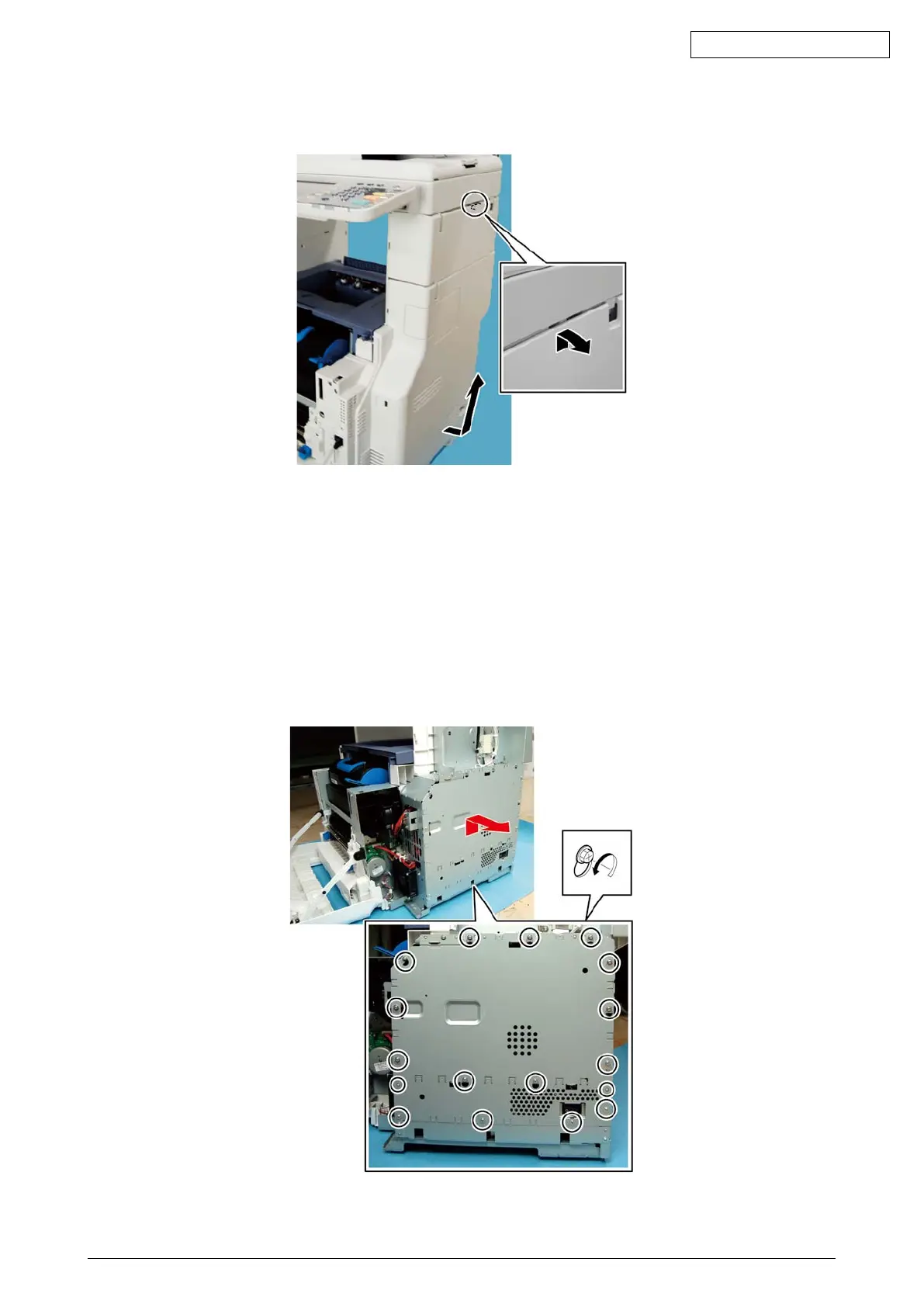

Fig.6-10
6.1.2 SYS Board cover
(1) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(2) Remove15screws,andtakeofftheSYSboardcover.
Fig.6-11
