Oki MPS5502 - MJ-1039 (Offline Stapler)

45641001TH Rev.1
2-6 /
Oki Data CONFIDENTIAL
2.1.6 MJ-1039(Ofinestapler)
(1) Press the [Power] button on the control panel to shut it down.
(2) Turnthemainpowerswitchoftheequipmentoff.
(3) Disconnect the power cable.
(4) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(5) Take off the SYS board cover.

P.6-4“6.1.2SYSBoardcover”

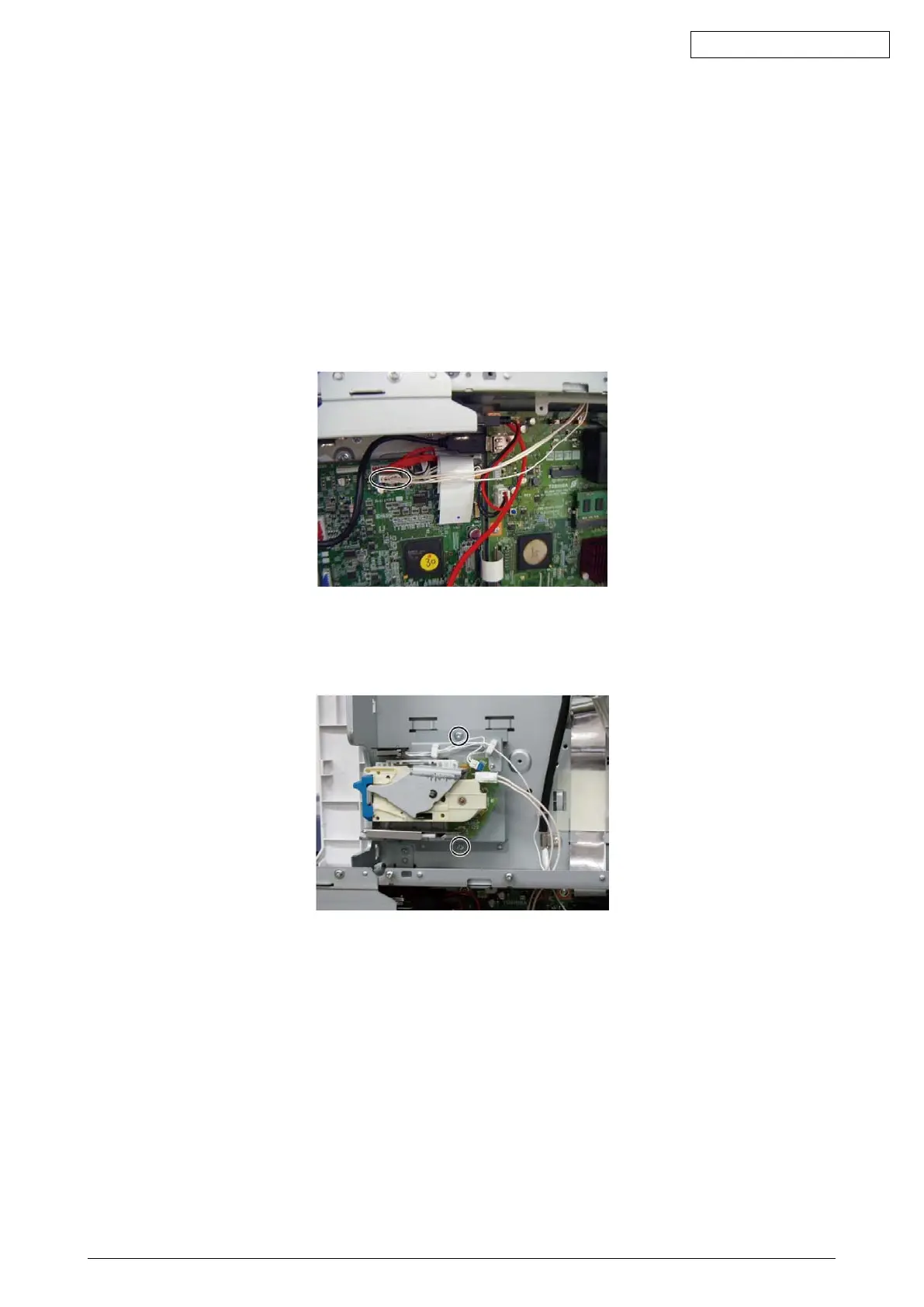

(6) Disconnect the connector.
Fig. 2-13
(7) Remove2screwsandtakeofftheofinestapler.
Fig. 2-14
