Oki MPS5502 Service Manual

45641001TH Rev.1
6-9 /
Oki Data CONFIDENTIAL
6.1.6 FAXunit
(1) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(2) Take off the SYS board cover.

P.6-4“6.1.2SYSBoardcover”
(3) Remove 2 screws.

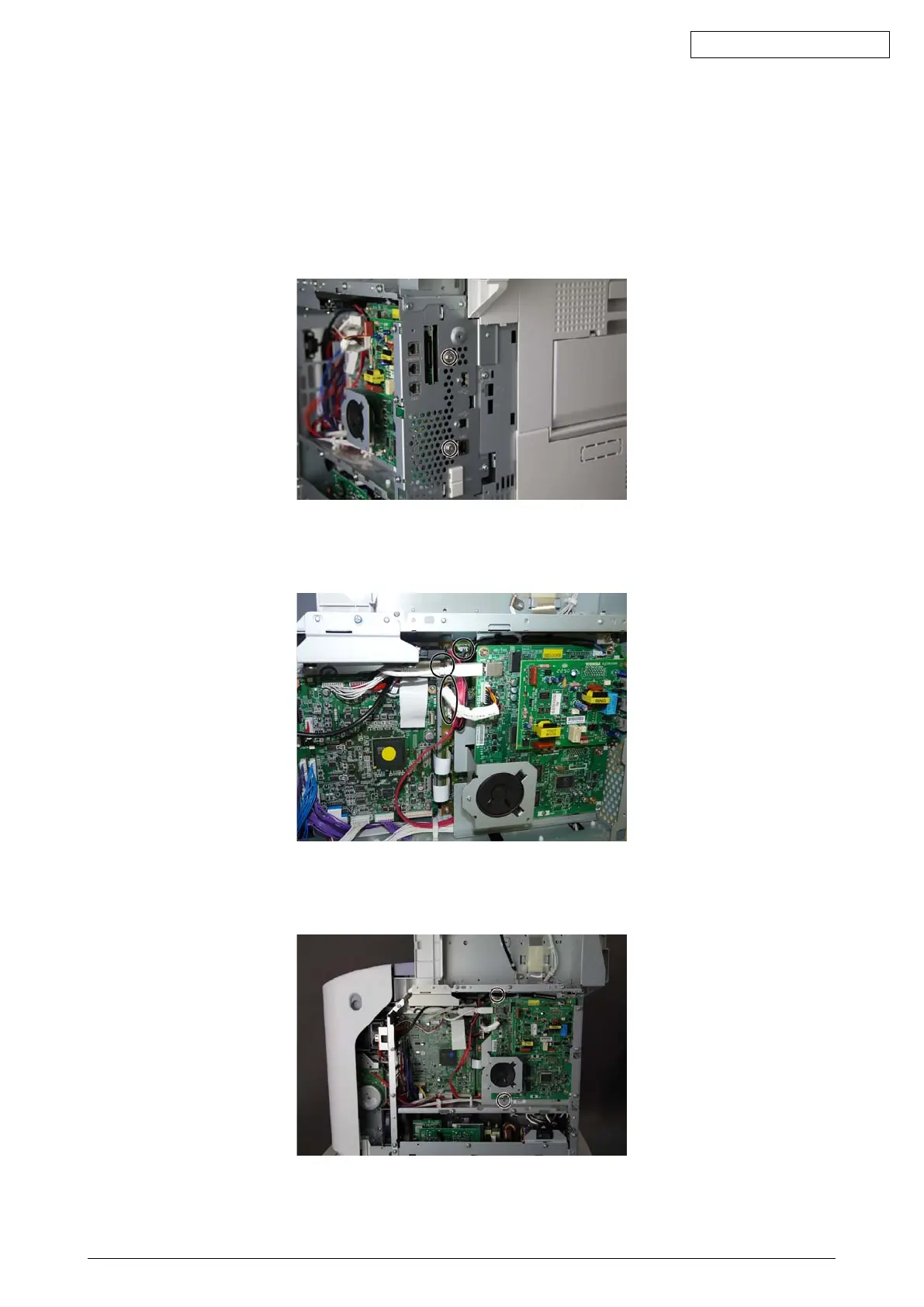

Fig.6-20
(4) Unplug the connectors and cable connected to the SYS board.
Fig.6-21
(5) Remove2screws,andthentakeoffthefaxunit.
Fig.6-22
