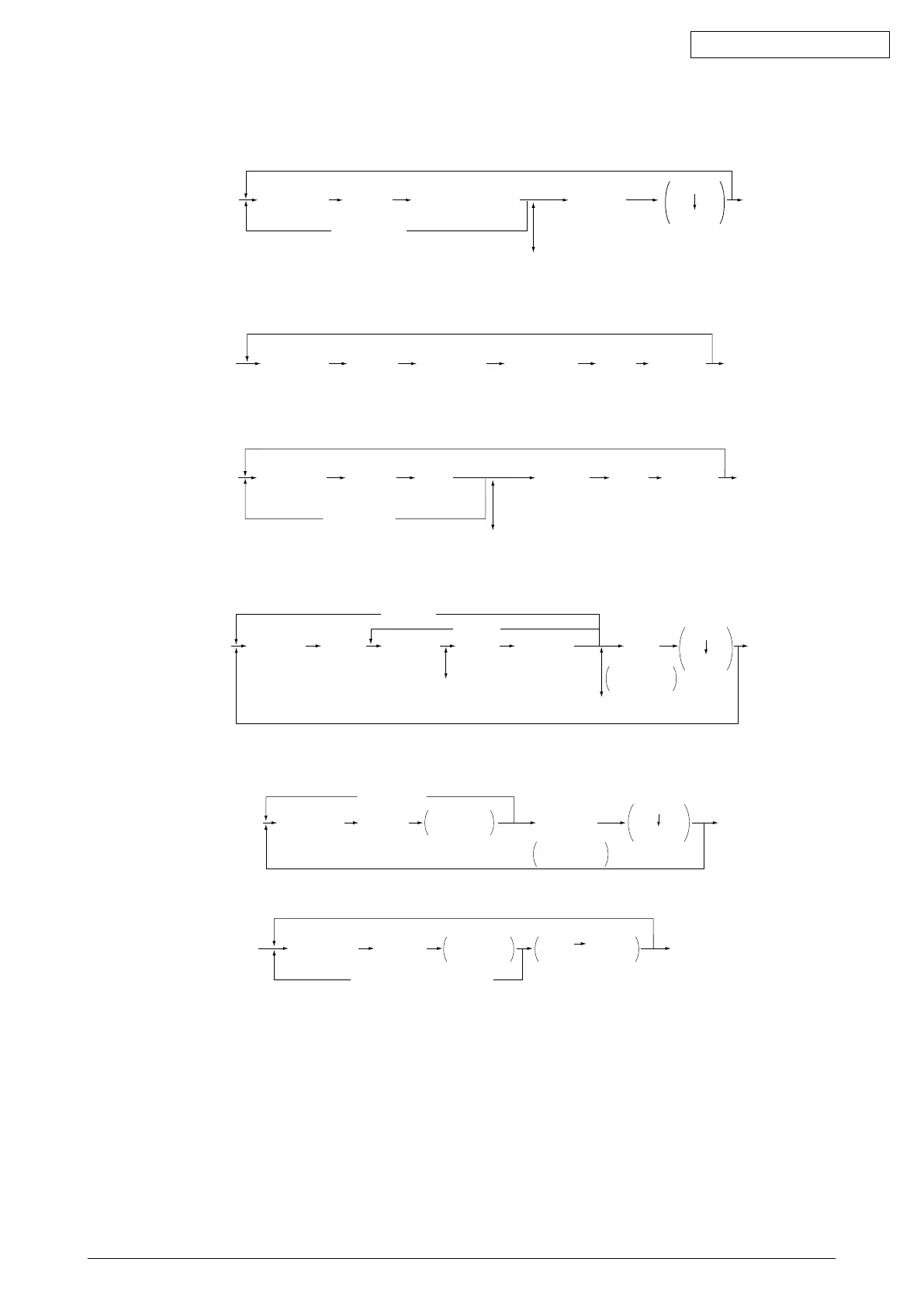

3.6 Operation Procedure in Adjustment Mode (05)
Procedure 1
[0][5]
[POWER]
[POWER]
OFF/ON
(Exit)
[Digital key]
(Code)
[START]
[CANCEL]
[Digital key]
*
[FUNCTION CLEAR]
(Key in a value)
[CLEAR]
(Corrects value)
[OK]
or
[INTERRUPT]
(Stores value in RAM)
[FAX]
[START]
(Test copy)
*Press [
FUNCTION CLEAR ] to enter minus (-).
Procedure 2
([FAX] [START])
(Test copy)
[0][5]
[POWER]
[POWER]
OFF/ON
(Exit)
[Digital key]
(Code)
[START]
[OK]
or
[INTERRUPT]
(Value unchangeable)
Value
displayed
()
Procedure 3
([FAX] [START])
(Test copy)
[0][5]
[POWER]
[POWER]
OFF/ON
(Exit)
[Digital key]
(Code)
[START]
[CANCEL]
[UP]
or
[DOWN]
(Adjust a value)
[FUNCTION CLEAR]
(Corrects value)
[OK]
or
[INTERRUPT]
(Stores value in RAM)
Procedure 4
[0][5]
[POWER]
[Digital key]
(Code)
[Digital key]
(Sub code)
[CLEAR]
(Corrects value)
[OK]
or
[INTERRUPT]
*Press [FUNCTION CLEAR] to enter minus (-).
([FAX]
[START])
(Test copy)
[CANCEL]
[START]
[START]
[START] [Digital key]
*[FUNCTION CLEAR]
(Key in a value)
[CLEAR]
(Corrects value)
Stores value
in RAM
[POWER]
OFF/ON
(Exit)
Procedure 5
[0][5]
[POWER]
[CANCEL]
[Digital key]
(Code)
[START]
Automatic
adjustment
[OK]
or
[INTERRUPT]
Stores value
in RAM
[FAX]
[START]
(Test copy)
[POWER]
OFF/ON
(Exit)
Procedure 6
[0][5]
[POWER]
[POWER]OFF/ON
(Exit)
[Digital key]
(Code)
[START]
[FAX] [COPY])
(Test copy)
*[CANCEL] or [CLEAR]
Automatic
adjustment
* Whentheautomaticadjustmentendsabnormally,anerrormessageisdisplayed.
* Returntostandbyscreenbypressingthe[CANCEL]or[CLEAR]button.
