TV Installation and Connection Guide
Connecting to a VCR
Use this method of connection if you subscribe to a cable TV system that does
not require a cable box.
1.Using A/V cable and S-Video cables, connect the VCR's Audio and S Video
OUT jacks to the TV's Audio and S-Video In jacks.
Connecting both Video IN and S-Video IN
Note: When you connect video equipment to both the same Video and
S-Video input jacks, display will automatically select S-Video first.
To view Video signal, please disconnect the S-Video jack or turn off the
S-Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or video
equipment has it. S-Video input has a better quality of picture than a
composite Video signal.
Disconnect all power sources before making any connections.

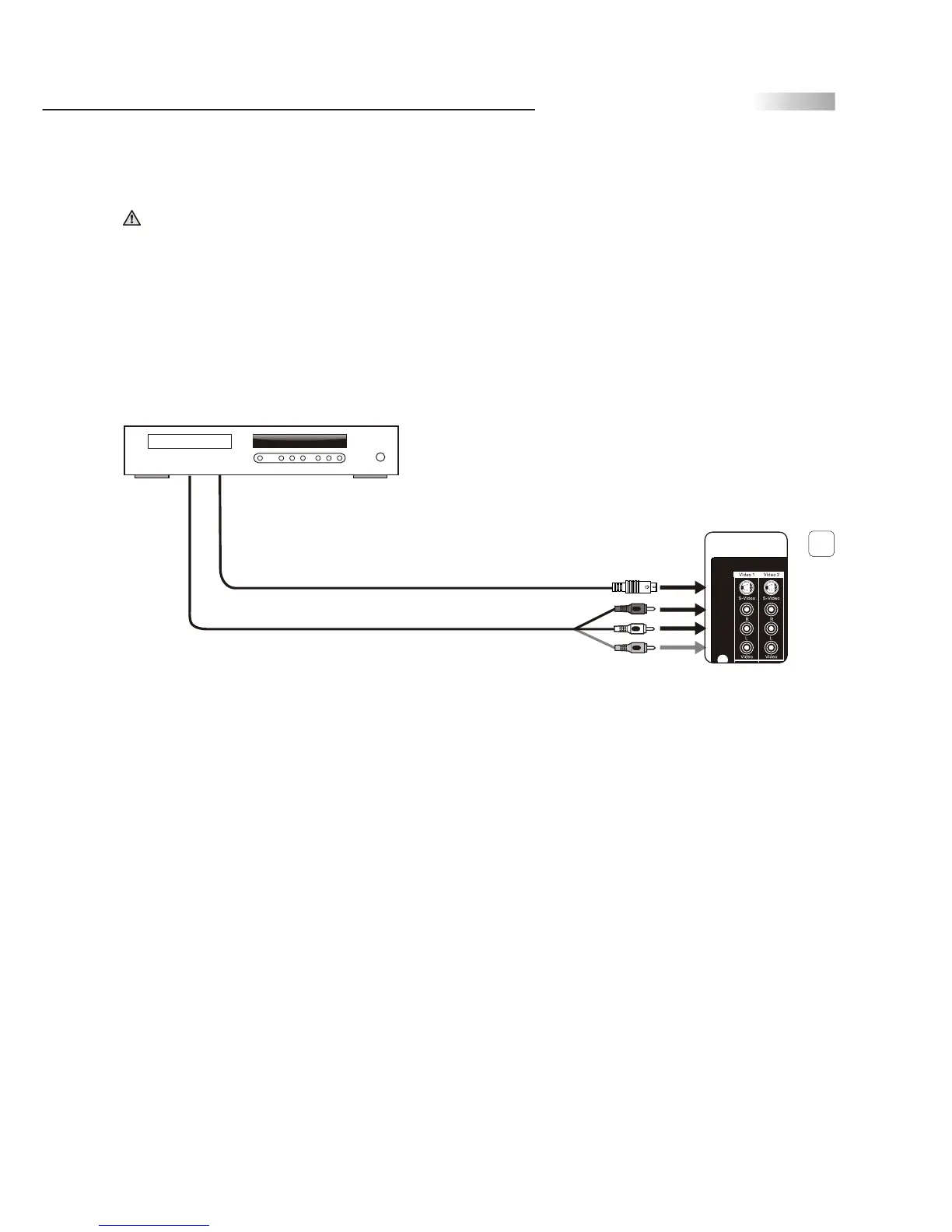

A/V cable with RCA connector
S Video cable
Yellow
Red
White
VCR
3
Rear of TV
To Next Page
