20
TV Installation and Connection Guide
Connecting to a Satellite Receiver or Cable Box
with Component Connectors
Use this method of connection if your Satellite Receiver or Cable Box
has component (Y, Pb, Pr) jacks.

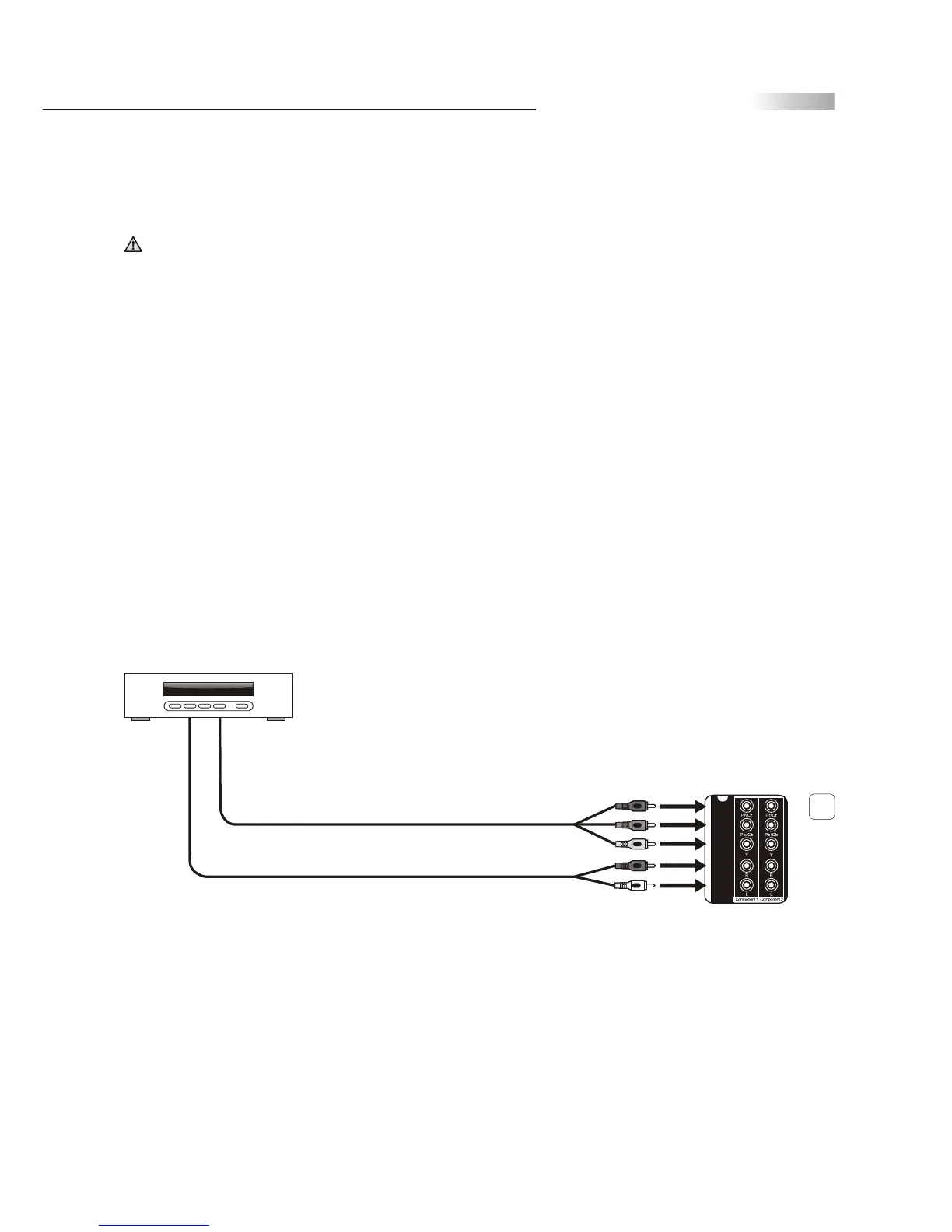

1.Using a component video cable, connect the Satellite Receiver or Cable
Boxes' Y, Pb and Pr jacks to the Y, Pb and Pr jacks on the TV.
Colors on Component Video connectors:
Y: Green
Pb (also identified as Cb, CB or B-Y): Blue
Pr (also identified as Cr, CR or R-Y): Red
Note: The Y, Pb and Pr jacks on your Satellite Receiver or Cable Box are
sometimes labelled as Y, Cb and Cr, or B-Y and R-Y. If so, connect the
cables to the matching colors.
2.Using an Audio cable, connect the Satellite Receiver or Cable Boxes'
Audio OUT jacks to the TV's Audio in jacks.
Note: The Y, Pb and Pr jacks do not provide audio, so audio cables must
be connected to provide sound.
Note: The YPbPr connection provides the best quality of video signal
compared to AV (composite) and S-Video connection.
Disconnect all power sources before making any connections.
Satellite Receiver or Cable Box
Component cable
with RCA connector
Audio cable
Red
Blue
4
Green
Red
White
Rear of TV
To Next Page
