TV Installation and Connection Guide
Connecting to a DVD Player with A/V or S Video
Cables
Use this method of connection if your DVD player does not have
component (Y, Pb, Pr) jacks.
Note: If your DVD player has component video output connectors, for
best picture quality, use the connection described for Connecting to a
DVD Player with Component Connectors.(See page.18)
1.Using an A/V cable, connect the DVD player's Audio OUT jacks to
the TV's Audio IN jacks.
2.Using an SVideo Cable, connect the DVD player's S Video OUT jack
to the TV's S Video IN jack.
Note: When you connect video equipment to both the same Video and
S-Video input jacks, the display will automatically select S-Video first.
To view Video signal, please disconnect the S-Video jack or turn off the
Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or video
equipment has the option. S-Video input has better quality of picture
than a composite Video signal.
Disconnect all power sources before making any connections.

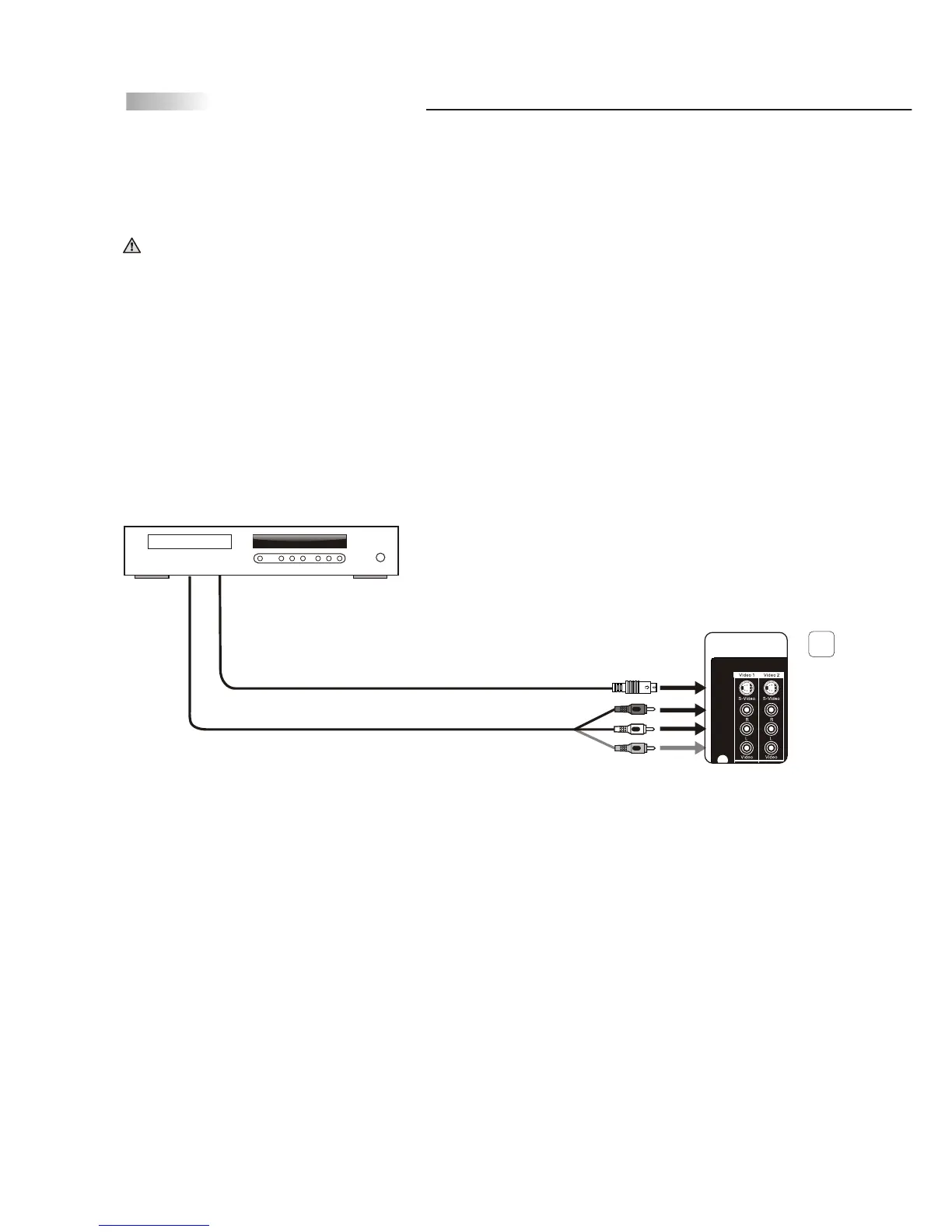

DVD player
A/V cable with RCA connector
S Video cable
Yellow
Red
White
3
Rear of TV
To Next Page
