5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jul. 2009
92
MAINTENANCE

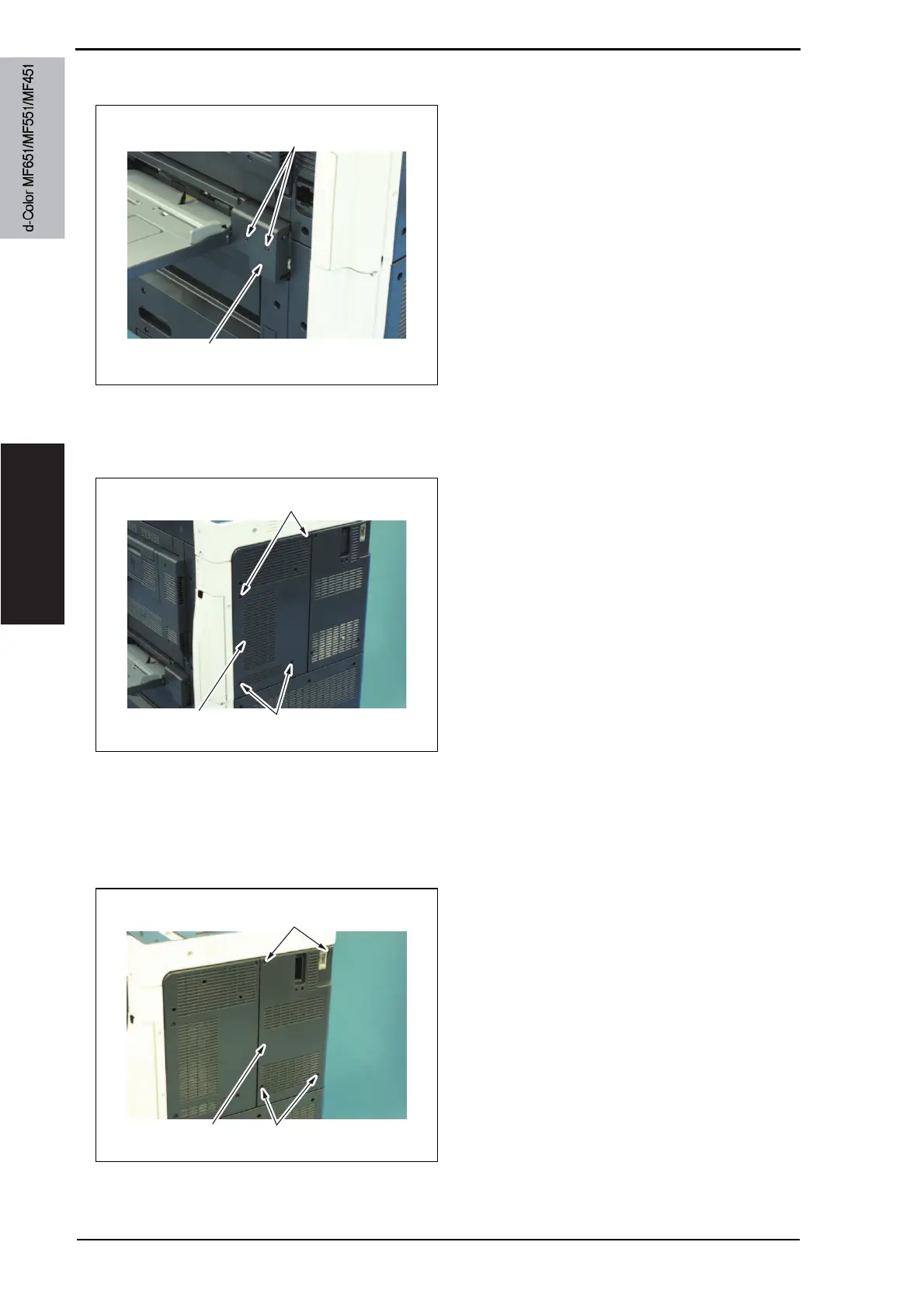

5.5.24 Manual bypass tray rear cover
1. Remove two screws [1], and remove
the Manual bypass tray rear cover
[2].
2. To reinstall, reverse the order of removal.
5.5.25 Upper rear cover/1
1. Remove four screws [1], and remove
the upper rear cover/1 [2].
2. To reinstall, reverse the order of removal.
5.5.26 Upper rear cover/2
1. Remove the toner filter.
See P.31
2. Remove four screws [1], and remove
the upper rear cover/2 [2].
3. To reinstall, reverse the order of removal.
A0P0F2C031DA
[2]
[1]
A0P0F2C032DA
[2]
[1]
[1]
A0P0F2C033DA
[2]
[1]
[1]
