Field Service Ver. 2.0 Jul. 2009 16. MECHANICAL ADJUSTMENT
651
ADJUSTMENT / SETTING

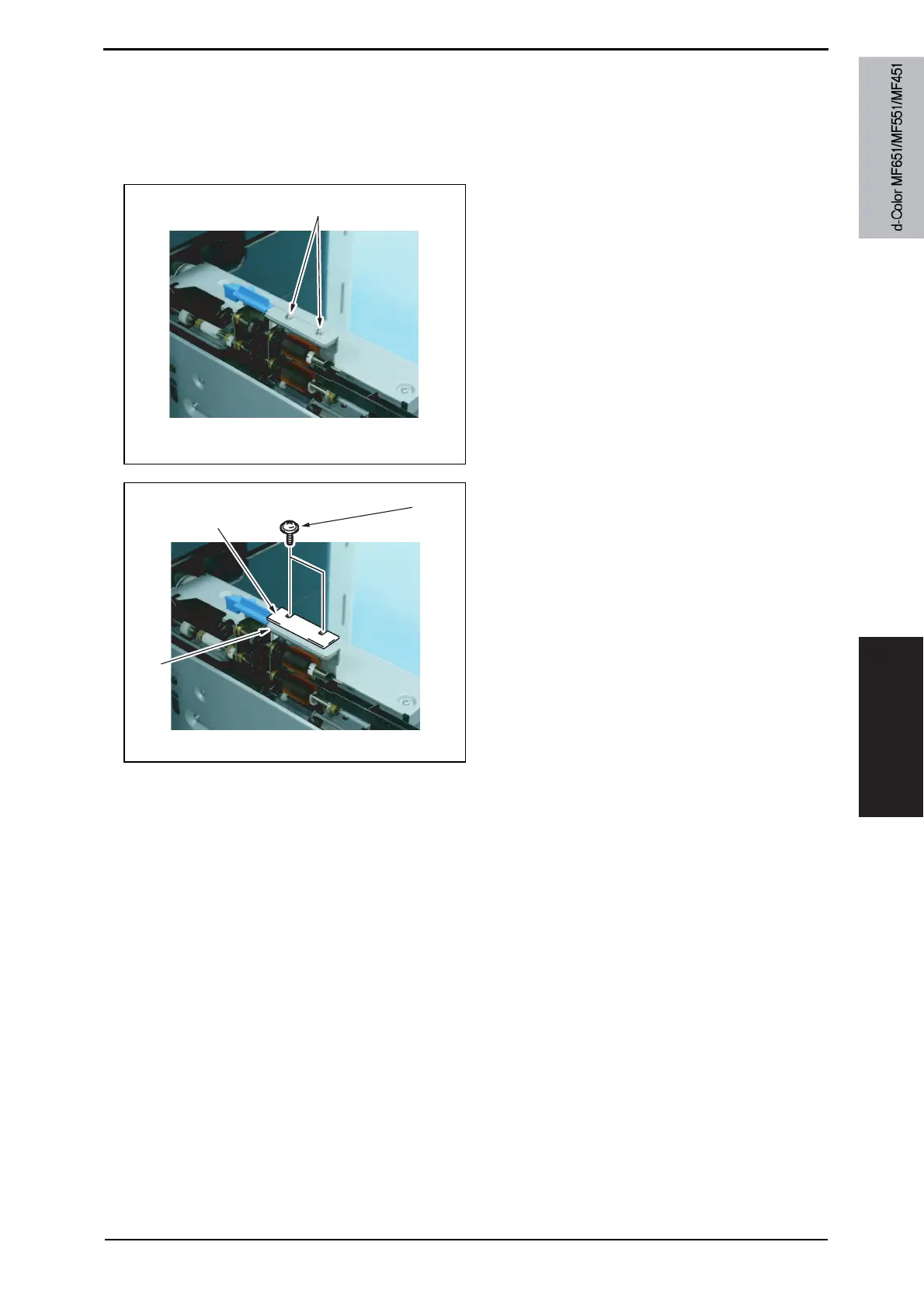

16.2.5 Pick-up roller load adjustment of the tray 3/4
This adjustment must be made in the following case:
• In case a no feed jam occurs frequently.
1. Pull out the tray where this adjustment is made.
2. Remove two screws (M3 x 6 mm:
V118 0306 03) [1].
3. In the pick-up roller assy, put paper
feed assist plate (A00J P001 ##) [2]
on the paper feed assist plate holder
[1], and fix them with two accompa-
nying screws (M3 x 8 mm: V118
0308 03) [3].
4. Set the tray.
5. Perform test print to check whether the no feed or the double feed occurs or not.
[1]
A00KF3C514DA
[2]
[3]
[1]
A00KF3C515DA
Y110571-1 Service Manual
