Field Service Ver. 2.0 Jul. 2009 5. OTHER MAINTENANCE ITEMS
221
MAINTENANCE

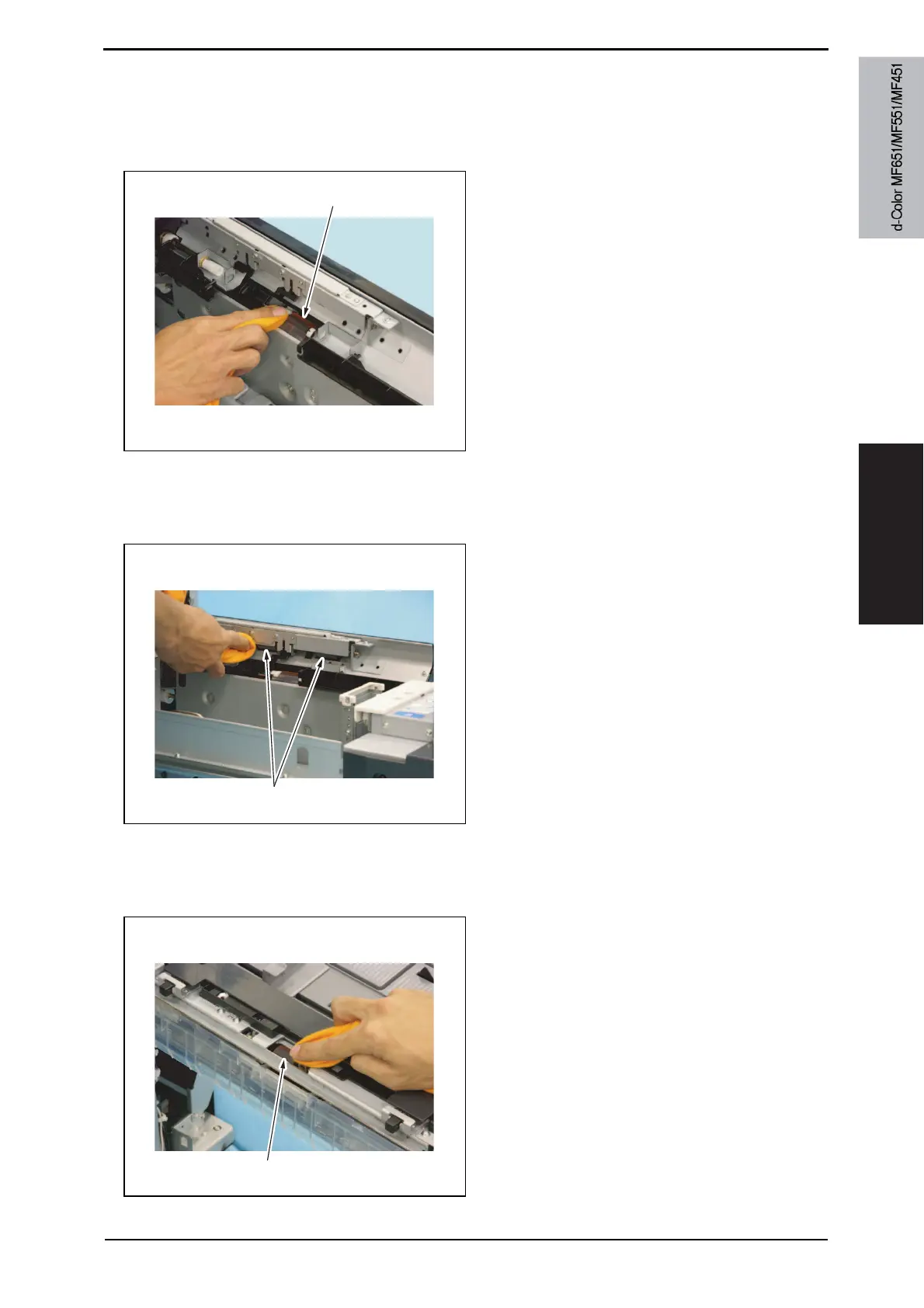

5.6.12 Tray 4 separation roller
1. Remove the feed roller/pick-up roller assy.
See the steps 1 to 4 of tray 4 feed roller replacement procedure.
See P.64
2. Using a cleaning pad dampened with
alcohol, wipe the tray 4 separation
roller [1] clean of dirt.
5.6.13 Tray 4 transport roller
1. Slide out the tray 4.
2. Using a cleaning pad dampened with
alcohol, wipe the tray 4 transport
roller [1] clean of dirt.
5.6.14 Manual bypass tray feed roller
1. Open the manual bypass tray door.
2. Using a cleaning pad dampened with
alcohol, wipe the manual bypass tray
feed roller [1] clean of dirt.
[1]
A00JF2C385DA
[1]
A00JF2C386DA
[1]
A00JF2C387DA
