Field Service Ver. 2.0 Jul. 2009 5. OTHER MAINTENANCE ITEMS
141
MAINTENANCE

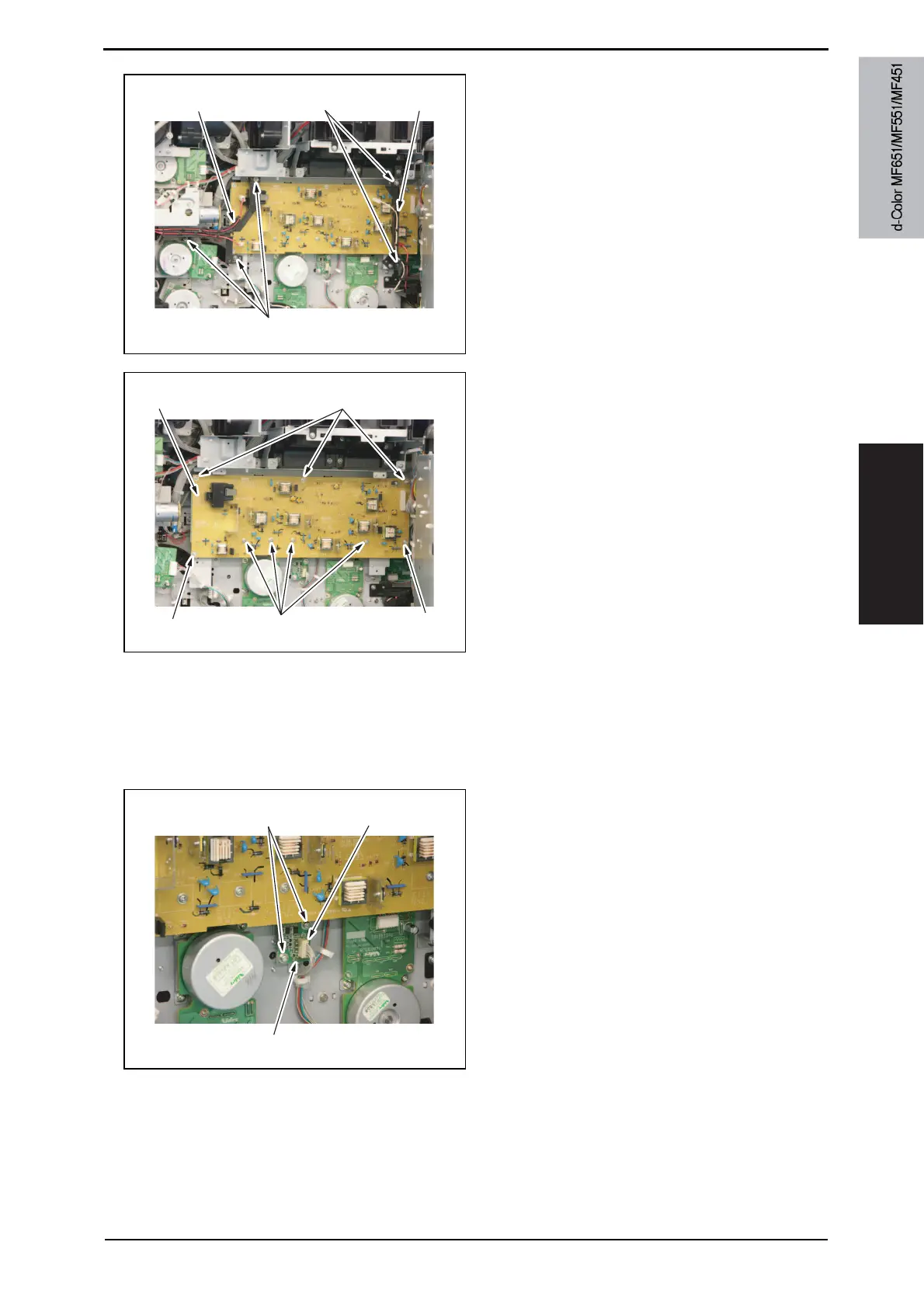

3. Remove five screws [1], and remove
two harness guides [2].
4. Remove five screws [1] and four tap-
ping screws [2], and remove the high
voltage unit/2 [3].
5. To reinstall, reverse the order of removal.
5.5.59 Service EEPROM board (SV ERB)
1. Open the PWB box/2.
See P.140
2. Remove two screws [1] and the con-
nector [2], and take out the service
EEPROM board [3].
3. To reinstall, reverse the order of removal.
[1]
[1]
[2]
[2]
A00JF2C207DA
[2]
[1]
[1]
[1]
[3]
A00JF2C208DA
[1] [2]
[3]
A00JF2C209DA
Y110571-1 Service Manual
