16. MECHANICAL ADJUSTMENT Field Service Ver. 2.0 Jul. 2009
652
ADJUSTMENT / SETTING
16.3 Mechanical adjustment of the bypass tray section
16.3.1 Adjustment of the bypass paper size unit
This adjustment must be made in the following case:
• The bypass paper size unit has been removed.

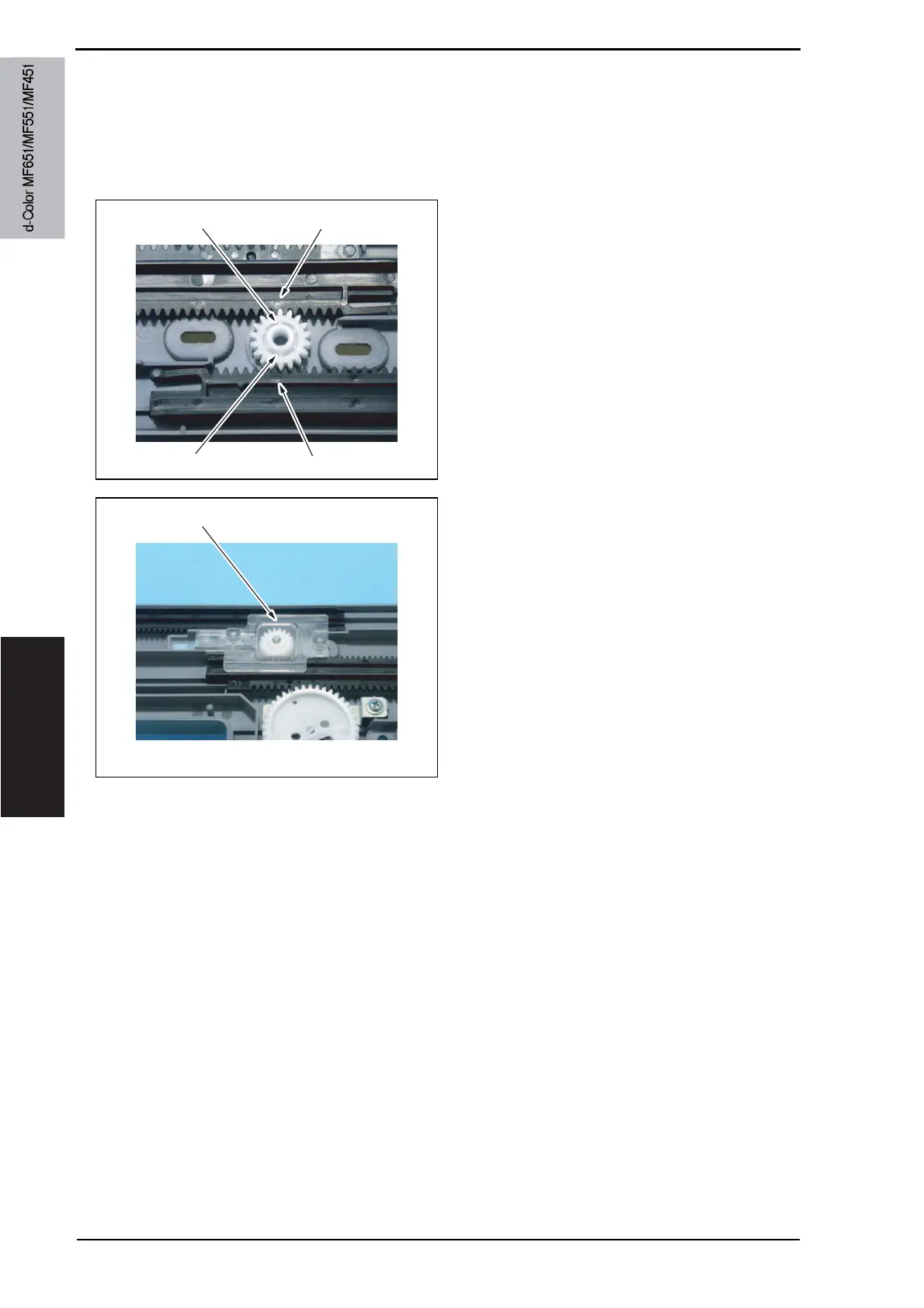

1. Align one of the six gear ribs [1] with
the match mark [2] on the bypass
guide rack gear.
2. Attach the holder [1] with two screws.
[2][1]
[2]
[1]
A00JF3C539DA
[1]
A00JF3C540DA
Service Manual Y110571-1
