Olivetti d-COPIA 255MF - Remove any Jammed Paper in Right Cover 1

To Next Page

To Previous Page

11-29

Troubleshooting > Clearing Paper Jams

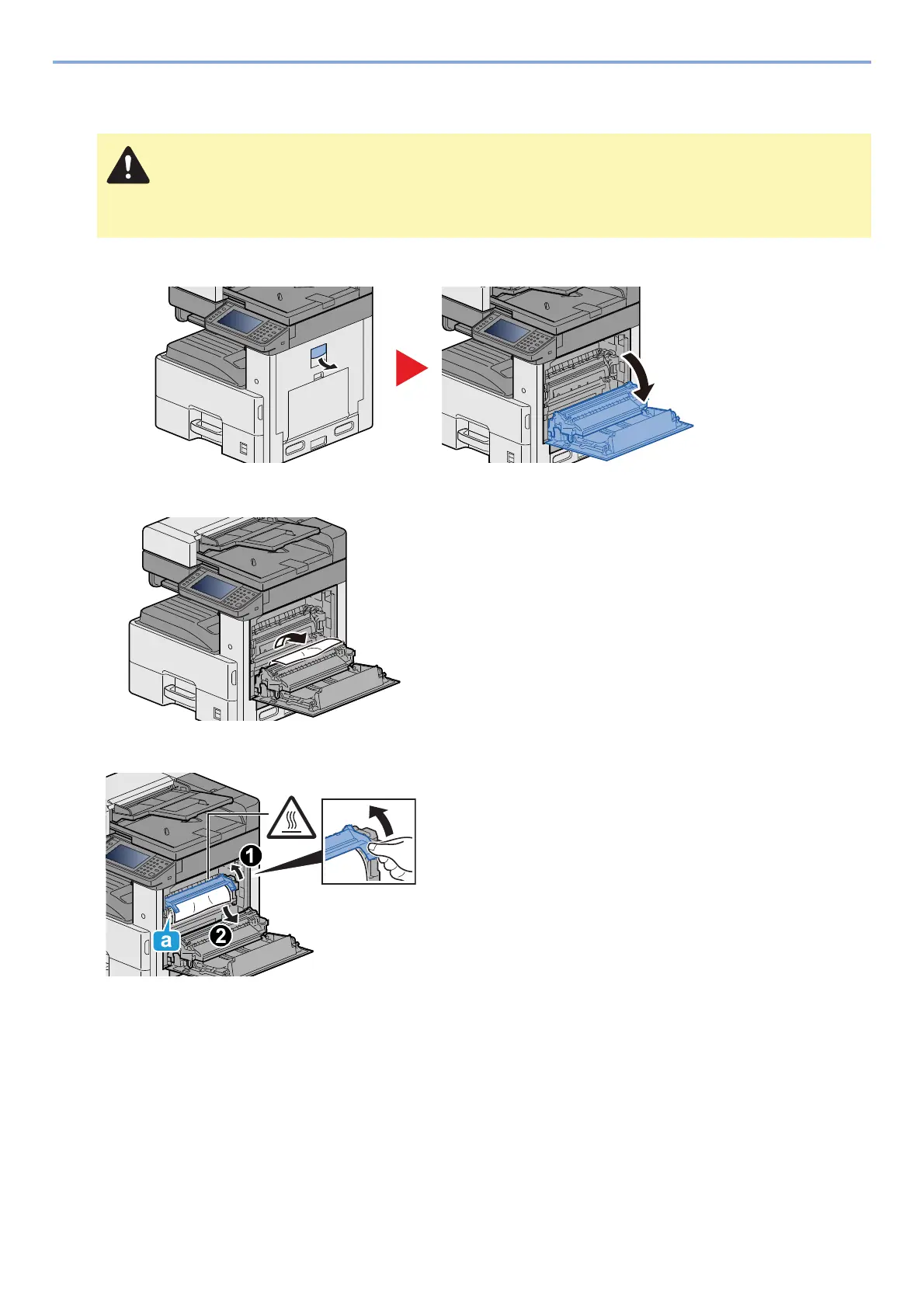

Remove any jammed paper in Right Cover 1

Open Right Cover 1.

Remove any jammed paper.

Open the fuser cover (a) and remove any jammed paper.

CAUTION

The fixing unit is extremely hot. Take sufficient care when working in this area, as there is a danger of

getting burned.
