3-22

Preparation before Use > Using the Output Stopper

Using the Output Stopper

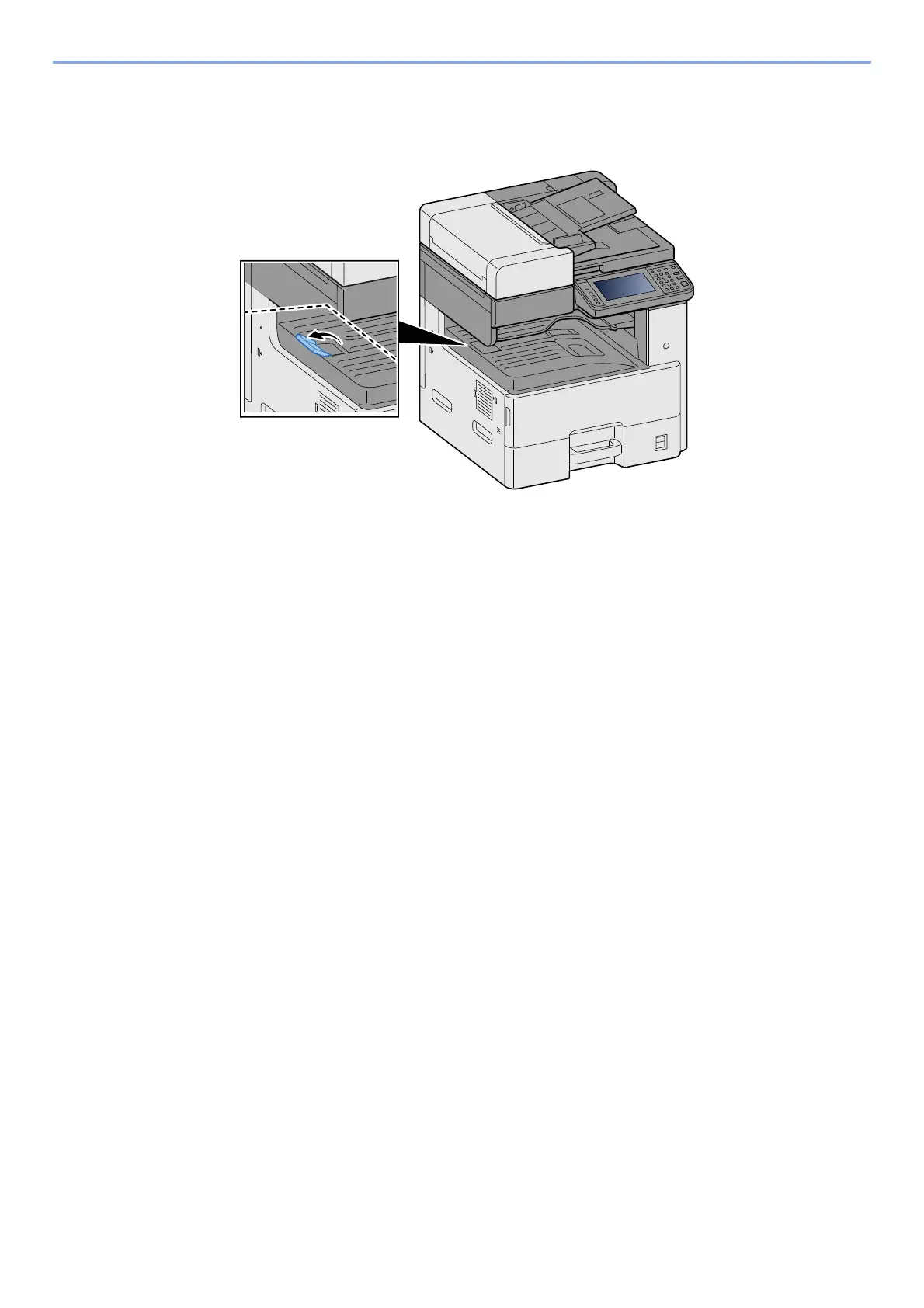

When using A3/ledger or larger paper, open the paper stopper as shown in the figure.
