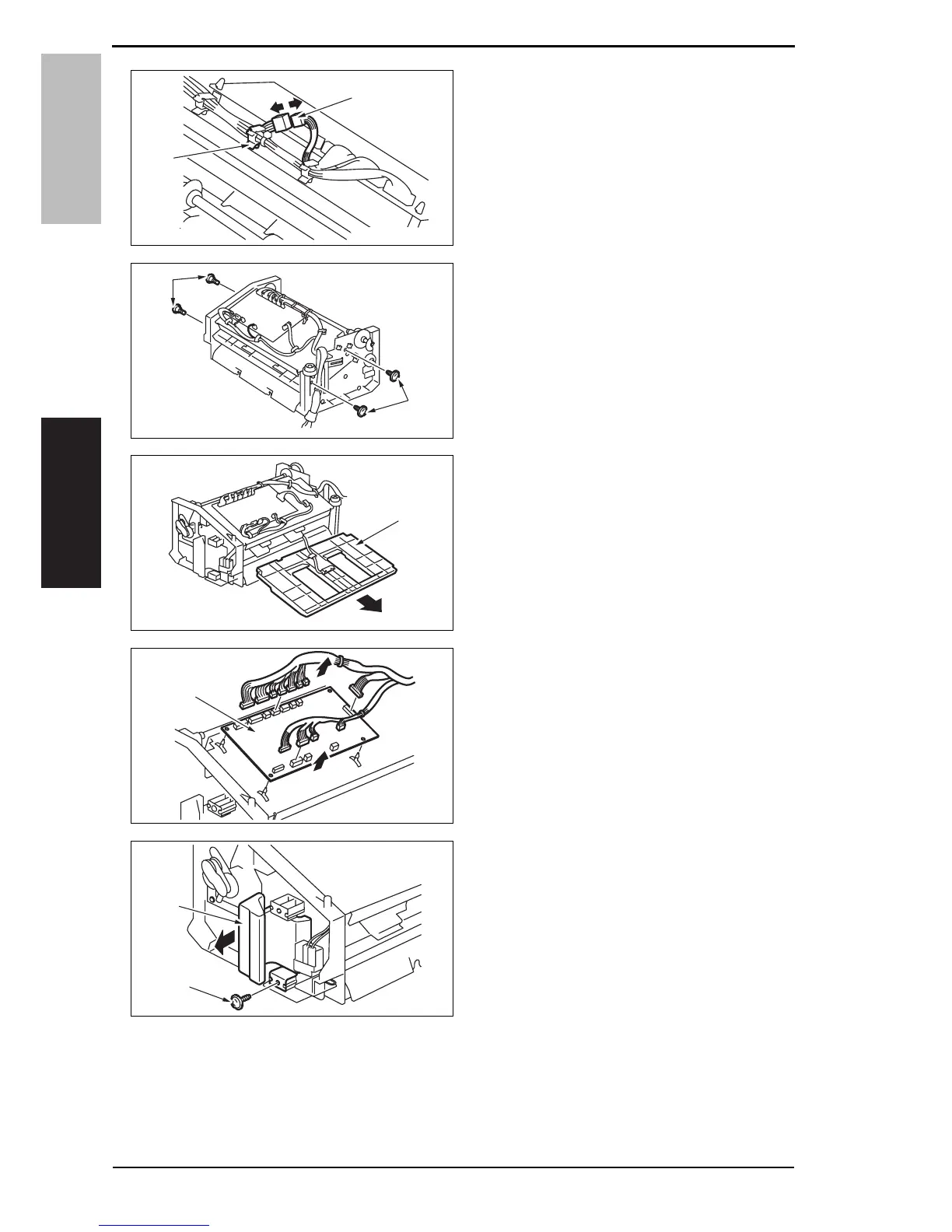

15. Remove the wire saddle [1], and dis-
connect the connector [2].
16. Remove two screws [1] and two
shoulder screws [2].
17. Remove the processing tray [1].
18. Disconnect all the connectors on the
SD control board.
19. Remove the board support, and then
remove the SD control board [1].
20. Remove the screw [1], and remove
the lock release lever [2].
